Gyronimo Performance Pad -Diamond DA42 New Generation-
The ultimate computer for Mass & Balance and Performance.

Compatibility: [Diamond DA 42, max GW 1900kg RFM as of 2009, Austro E4B engine, 123.5 kW at 2300 RPM)

Note: (The max GW can be set to 1999kg as an option, however, this option is for weight & balance only. Performance data is computed up to 1900kg only)

Calculate and interpolate performance data using the actual values
from the Diamond DA42NG Pilot's Operating Handbook (POH).

Finish your complete fight planning in just a few seconds.
Performance planning has never been easier and quicker.

Results are updated immediately and displayed in high resolution graphics,
enhanced for the iPad 2/3 and iPad Mini.

Change all important values using sliders.
Experiment with the results and create "what if" scenarios in no time.

Find your optimal cruise altitude, takeoff ground roll, landing distance,
and climb rate.

The Performance Pad Diamond DA42NG has seven main pages:

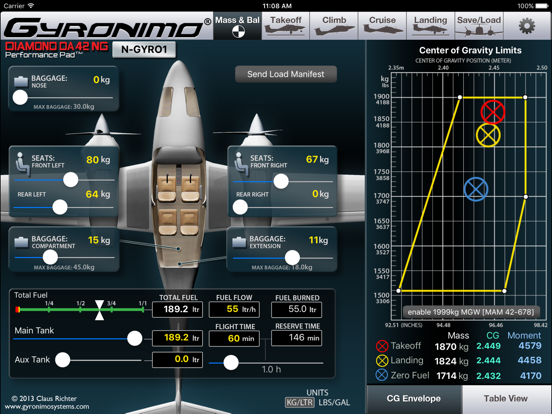

1. The Mass & Balance (or Weight & Balance) Page
Calculates Center of Gravity, Moments, Takeoff and Zero Fuel Mass.

Set person and baggage weights in seconds using the convenient sliders.
Check if the CG is within limits using three graphical displays
- Moment Envelope
- CG envelope
- Aircraft axis
or see a complete load manifest that you can send to your email address
to quickly prove that you have completed the Weight & Balance for you flight.

- Send a Mass & Balance Summary to your email address.

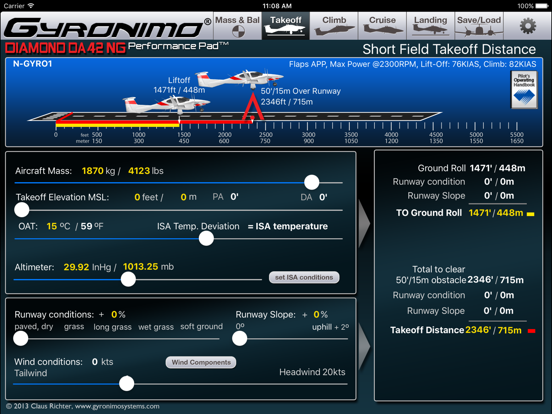

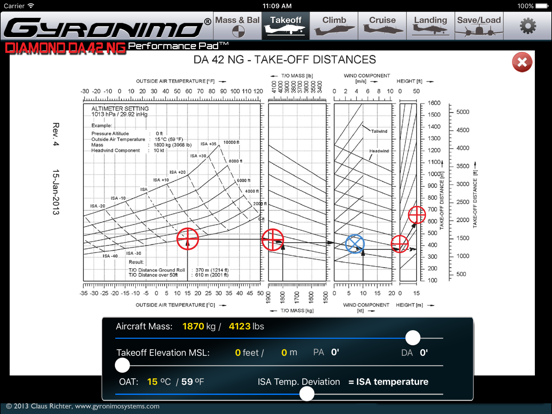

2. The Takeoff Page
Using the actual data from the Operating Handbook
the Performance Pad calculates and displays Ground Roll and Landing Distance
based on:

- Aircraft Mass
- Takeoff Elevation in MSL (Pressure Altitude and Density Altitude will be computed)
- Outside Air Temperature (OAT)
- Altimeter Setting
- Runway Conditions (i.e. paved dry to long grass or snow)
- Runway Slope
- Wind Conditions

Wind Components Computer
- Use the Wind Components page to determine your headwind or tailwind component.
Rotate the wind dial to set wind direction, set windspeed and the results will be
transferred to your takeoff computations automatically!

3. The Climb page
Calculates time, fuel and distance based on
- Difference between Takeoff Elevation and intended Flight Level
- Altimeter Setting
- Outside Air Temperature (OAT)
- Altimeter Setting
- Headwind or Tailwind Component

Also the Rate of Climb and Climb Speed will be displayed.

4. The Cruise Page
Using the actual data from the Pilot's Operating Handbook you can
determine the optimal cruise altitude based on
- Trip Distance
- Flight Level
- Engine RPM
- Temperature
- Wind and Altimeter Setting

and calculate Break Horse Power (% BHP), Fuel Flow and True Airspeed

The Max Range and Range including Reserve will be displayed graphically.

The Fuel Management allows to enter Reserve Time for Contingency, Alternate and Final Reserve.
The Fuel Usage is displayed graphically.

Fuel Efficiency is computed in Miles per Gallon and Liter per 100km to set set results in a perspective.

5. Landing Page
Calculates Ground Roll and Landing Distance based on wind, elevation, altimeter setting etc.
Like on the Takeoff Page you can use the Wind Components Computer to quickly determine head- or tailwind components

6. Load / Save.
- Load and Save up to five Aircraft Settings and Scenarios.

7. Setup
- Visit our video channel and watch tutorials and video manuals.

For iPad 2, iPad 3 (iOS7 recommended)

DISCLAIMER:
The author disclaims any liability for any direct, indirect, incidental, or consequential losses or damages in connection with your access to or use of this software. The information contained in this software is for general information purposes only.
