Electronic Component Pinouts

iOS Universel / Education

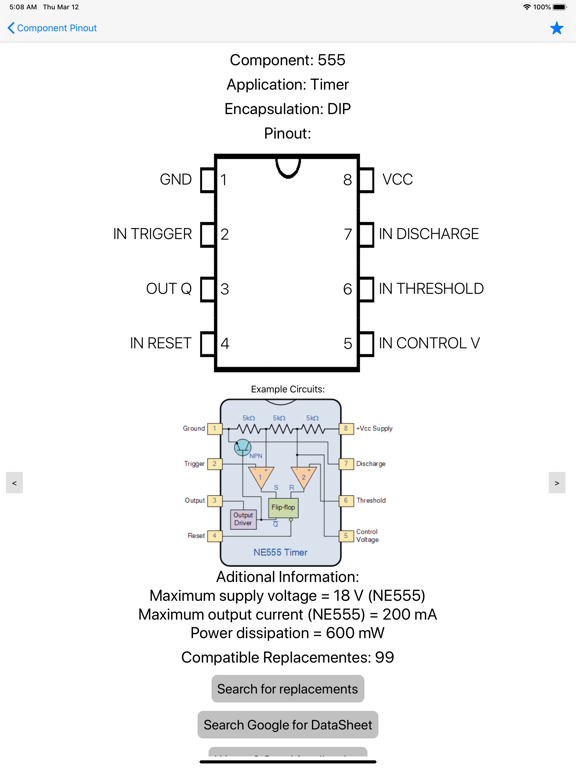

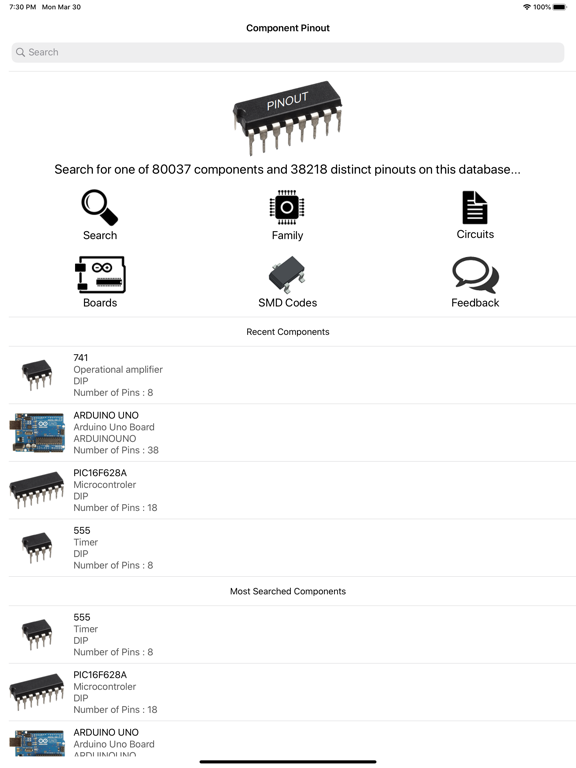

This application provides a offline database with more than 80000 electronic component pinouts. Chips, Transistors, Diodes, Triacs, Microprocessors and a lot more.

If you don't have a chip pinout, please send a feedback and we can add to our database.

This app have information on transistors, triacs, diodes, memory chips, microcontrollers, Arduino Boards, shields and more!

Component Pinouts is fast and does not require internet access to search. More than 23000 distinct pinouts with a lot of equivalents.

Quoi de neuf dans la dernière version ?

- Around 100 new components Added!
