Stress Concentration Factors 2

iOS Universel / Education

Sometimes simple stress formulae are not enough. The real peak stresses in hardware occurs at geometric discontinuities such as notches, holes, & filets. To get an accurate stress value, you need a stress concentration factor. This app makes that easy. Along with stress concentration factors, this app calculates the nominal and peak stresses, displays the equations, & easily prints or shares via email your result with a couple of taps.

Stress Concentration Factors 2 Features:

- Calculates the Stress Concentration Factor
- Units in Metric and English Systems
- Nominal Stress
- Peak Stress
- Designed for use on the iPhone, iPod Touch, & iPad
- Printing Capability
- Ability to email a PDF of the Geometry, Inputs, Equations, & Results

Stress Concentration Factors 2 calculates the stress concentration factors & displays the equations for 26 different geometries including:

Solutions:

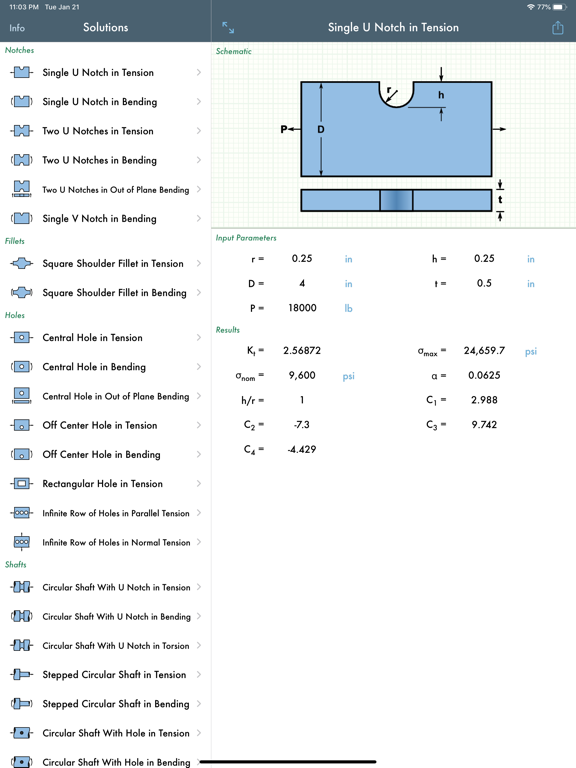

• Single U Notch in tension
• Single U Notch in bending
• Double U Notch in tension, bending, & out of plane bending
• Single V Notch in bending
• Infinite Row of U Notches in tension

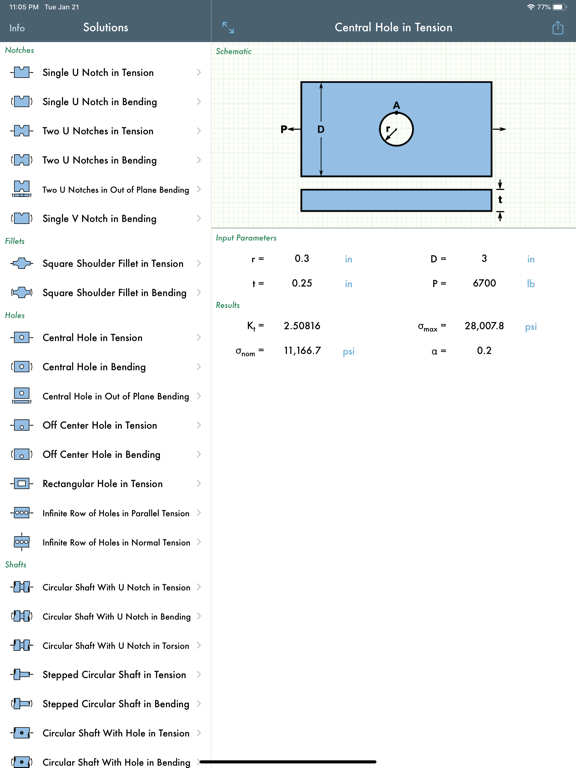

• Central Hole in tension
• Central Hole in bending, & out of plane bending
• Off Center Hole in tension & bending
• Rectangular Hole in tension
• Infinite Row of Holes in parallel & normal tension
• Square Shoulder Fillet in Tension
• Square Shoulder Fillet in Bending
• U Notch Circular Shaft in tension
• U Notch Circular Shaft bending & torsion

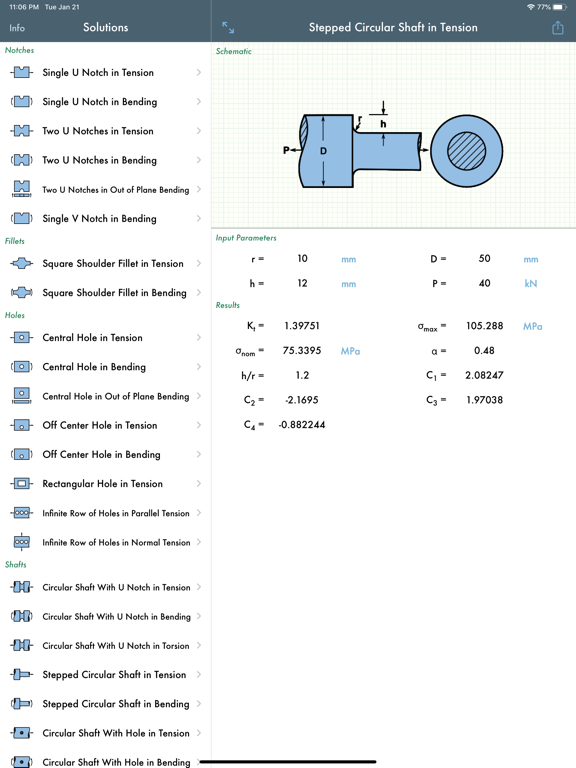

• Stepped Circular Shaft in tension, bending, & torsion
• Circular Shaft with a Radial Hole in tension, bending & torsion


Check out our other engineering apps by searching the App Store for:
• Pressure Vessel Pro
• Moments of Inertia
• Mohr's Circle
• Stress Intensity Factors Pro
or search J.R.Hobbs to see them all.

Quoi de neuf dans la dernière version ?

-Bug fixes
-Other minor updates
