H225 Flight Perfo
iPhone / Navigation

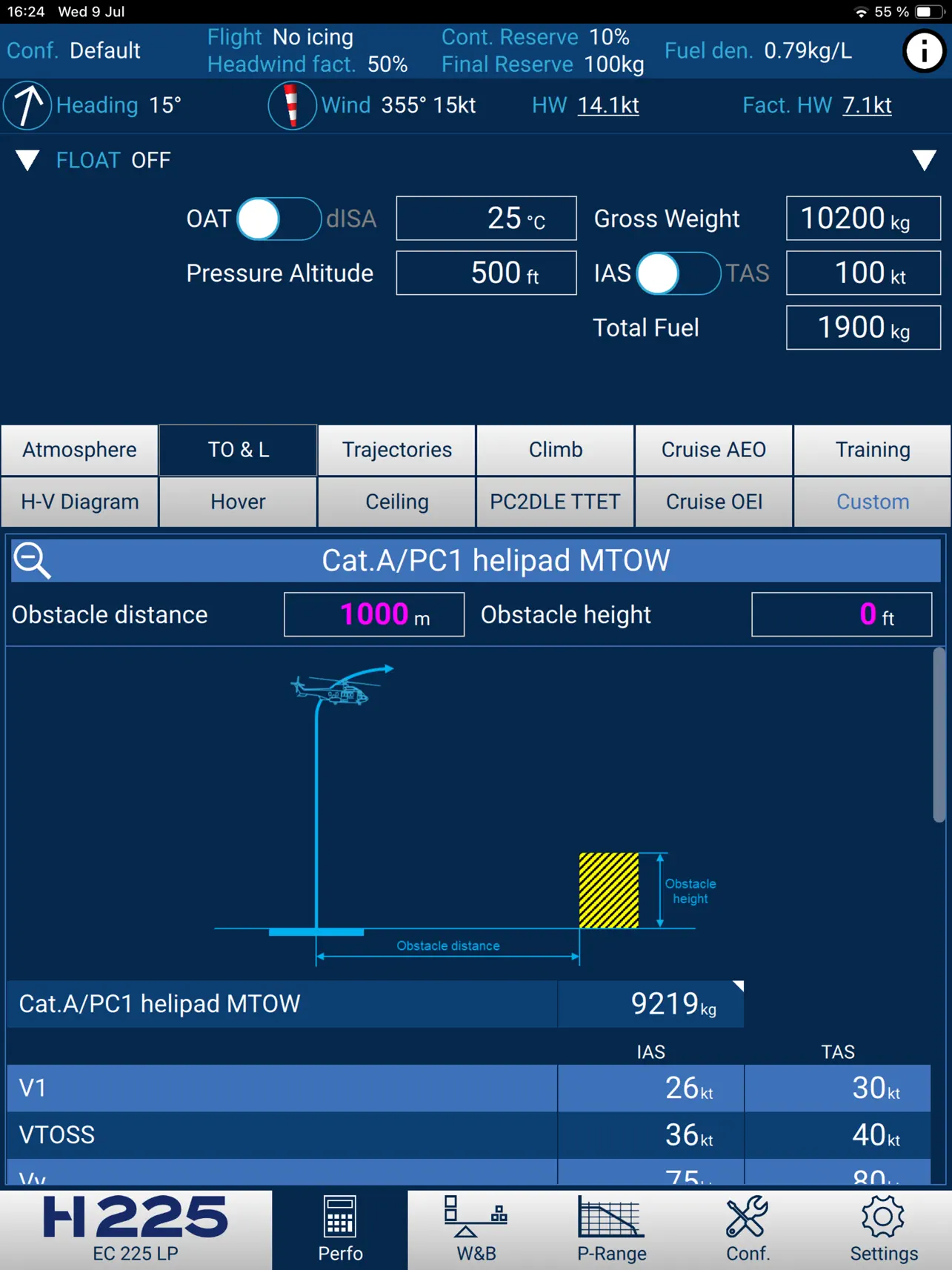

H225 Flight Perfo is an Airbus application designed to easily and safely compute the H225 helicopter performance.
The performance calculation, in accordance with the EC225 LP Flight Manual, is based on the flight conditions and the helicopter’s configuration (including optional equipment which affects performance) as set by the user.
The application covers the following performance areas :
- Maximum Takeoff Weight, Maximum Landing Weight
- Hover, Climb, Level flight
- Ceiling
- Best Endurance Speed, Best Range Speed, Maximum Speed
- Fuel Flow, Range, Endurance
- Height-Velocity diagram, Fly-away
- Clear Area, Helipad, Elevated Heliport
- Category A, Category B
- Performance Class 1, Performance Class 2 with Defined Limited Exposure Time
- Takeoff, Landing and Fly-away trajectories
- All Engines Operating performance, One Engine Inoperative performance
- Performance in Training mode
- Payload-Range
- Weight & Balance
For Weight & Balance computation purpose, Flight Perfo allows to use specific layouts - in complement to ones available by default - as created in a third party Windows application: Ground Perfo.
Quoi de neuf dans la dernière version ?
WB correction of load management
