WilhelmSK
iOS Universel / Navigation

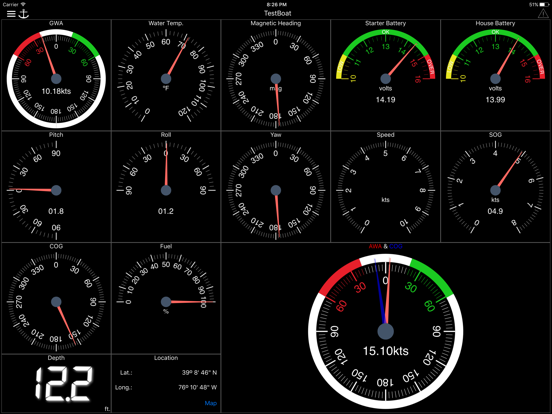

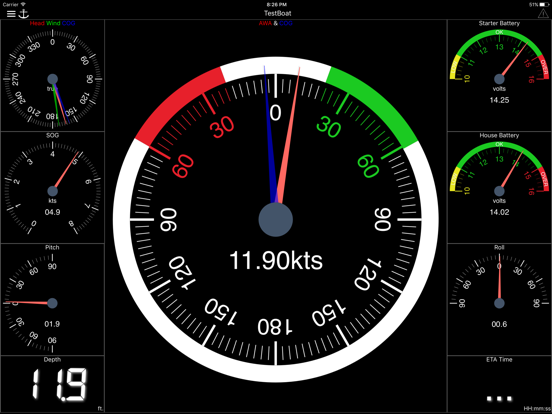

WilhelmSK is a highly customizable display, monitoring and control dashboard for your boat.
WilhelmSK works best wth Signal K Server .
It can also connect directly to some devices:
º NMEA 0183 over TCP or UDP. (from for example, Digital Yacht's Smart WLN10)
º Any modern Navico (Lowrance, Simnet or B&G) GoFree MFDs
º NMEA 2000 via Yacht Device's YDWG-02
º NMEA 2000 via Actisense W2k-1
º Victron Venus GX or CCGX
º Victron VRM
º Chetco SeaSmart Devices
º Chetco HelmSmart
RayMarine Auto Pilot Support (via node-server or the YDWG only)
º View or change current mode (Standby, Auto, Wind, Track)
º View current target heading or Wind direction
º Change target heading or Wind direction
º Acknowledge "Turn To Waypoint'
Active Captain:
º You can view Active Captain Points of Interest and review or comment on them.
º Go to Settings->Appearance to show Active Captain Points of Interest on the maps.
Alarms and Notifications
º View list of current current alarms
º Acknowledge RayMarine "Turn To Waypoint' *
º Push notification support *
º Setup server side alarms *
º Set an anchor alarm with the push of a button *
Navionics Maps
If you already have the Navionics Boating application with an active subscription, you can now use the same Navionics charts in WilhelmSK. Ensure you are a registered user with Navionics and have a Username and Password. If you have not registered, go to the Navionics Boating App’s Main Menu, click on the top “Me” option and then click Login. In WilhelmSK click the login button on the bottom right of the map and enter your Navionics login information.
Features:
- Raymarine MFD: display and interact with a RayMarine MFD (discovered via Bonjour)
- Fusion stereo (control zone volumes, source input, play, pause etc.)
- Create a gauge for any value available via SignalK
- Sophisticated anchor alarm (requires node server and signalk-anchoralarm-plugin)
- Customize gauge display using SignalK meta.zones
- Customize gauge range, min/max, etc.
- Save custom gauges to node server or the cloud for use on other devices
- Wind Angle gauges can optionaly be rotated so that they always point ot the bow of the boat, regaurless of device positioning
- Place gauges by long pressing on a gauge and choosing a differnt one
- Make a gauge full screen by double tapping
- Multiple layout support. Create a differnt layout for Steaming, Sailing, Home Monitoring, etc.
- Customize the nuber of pages and their layout
- Manuall connection configuration synced accross devices via iCloud
- Automatic connection selection based on current ip (usefull when Bonjour is not available and you have multiple boats)
- Two themes, dark and light
- Animated gauge needles
- iPad Slideover and Split View support (Your gauge configuration can be customized for these views)
- Connections can be configured to be refreshed manually or at a specific time interval
- Design your own custom gauge templates
- Share your custom templates via Air Drop, eMail, Text, etc.
- Edit ApplyTV or other device layouts and templates remotely using your iPhone or iPad
- Most gauges can be configured to be digital or analog
- Enter the SignalK path and title for any gauge to show data not supported by default
- Displays AIS targets in the Map views
- Configure node server plugins inside of the app
- IP and RTSP camera display
* Some advanced features require signalk-server-node and special plugins installed. Setup Instructions at https://github.com/sbender9/wilhelmsk-node-server-setup
Quoi de neuf dans la dernière version ?
1.17.3:
* Fix Non-SK connection types not working, YDGW, W2K-1, etc.
* Use V2 notifications api for push notification actions
* Fix black box when long pressing on push notifications
* Show MOB location on maps
* Draw a line from the boat to the active waypoint on maps
* Add MOB button in title bar (V2 API only)
* Add support for V2 notifications API (off by default)
* Remove check for alarm silencer plugin, not used any more
* Thermostat gauge now supports setting the temperature and mode
* Fix rudder backwards on Autopilot and Multi Gauge
* Fix multiswitch crashing when there is no meta data
* Update Non-SK nmea2000 code to the lastest
* Add simrap autopilot support for non-SK NMEA 2000 connections
* Add simrad AP states to Apple Watch
* Fix Freeboard Gauge and WebGauge not passing login info to sk apps
* Fix track not showing on maps
* Use V2 SK API for autopilot
* Fix anchor alarm warning circle showing when anchoring process restarted
* Fix discovered connections failing with special characters in host name
* Fix draw MultiSwitch buttons in proper order
* Fix Advanced Gauge Config sliders now update the value continuously
* Built with Xcode v26, look and feel changes
* Add option to protect MiltiSwitch gauges to prevent accidental activation
* Add Alternator data to the Electrical Overview Gauge
* Sliders can now adjust values that are not ratios
1.17.2:
* Fix crash related to null zones in meta data
* Fixed more issues connection to Victron VRM SK
* Fixed issues connection to Victron VRM SK
* Better logging for Victron VRM SK connections
* Fixed Local Critical Notifications Not Working
1.17.1
* Added support for critical alerts
* Added ability to connect to a Signal K Server runnning on Venus OS via VRM
* Added a "Anchor Watch" gauge for iOS/Watch/Widgets
* Added Electrical Overview Gauge for the Watch
* Added new "Veritcal Stack" gauge
* The Watch App now supports WatchOS 10
* Added freshness and activity inicators to Watch App
* The new Layouts and Templates editor is back!
* Fixed boat drawing on Maps when the beam or length are zero
* Swap colors on the analog rudder gauge
* Fix bar ruddergauge was backwards
1.17.0:
The Watch app has been completely re-written and now supports complications and widgets. Complications and widgets only work with a Signal K Server.
Introducing Widgets!
* Widgets are available on
* Home Screen,
* Lock Screen (including the line obove the time),
* StandBy Mode
* Today View
Shortcuts allowing buttons in Control Center, Automations, Siri Support
* Set A Multi Switch (set victron inverter on, charge only, etc)
* Flip A Switch (turn a switch on or off)
* Toggale A Switch (taggle the switch state)
* Launch WilhelmSK
* Drop/Set/Raise Anchor
* Control a fusion stereo
* Send a PUT to any path
* Get the value of a path
* Control the state and heading of an autopilot, advance waypoint
Builtin Siri Commands
* "Drop the anchor in WilhelmSK"
* "Raise the anchor in WilhelmSK"
* "Set the anchor in WilhelmSK"
* "Tack to port in WilhelmSK"
* "Tack to starboard in WilhelmSK"
* "Toggle the [switch displayName] in WilhelmSK"
* "Turn the Autipilot Ten Degrees To Port in WilhelmSK"
* "Turn the Autipilot One Degree To Starboard in WilhelmSK"
You can creat Shortcuts with different names, and you won't have to say "in WilhelmSK"
These new features only work with Signal K connections
