Ellipsoidal Template Marking App is used to Calculate the Coordinates points of the elliptical profile to mark the template layout of the ellipsoidal head.
This App is very helpful in the Pressure Vessel and Process Equipment Fabrication Industry.
App Features :
1. easy to layout the ellipsoidal dish template marking.
2. no irritating ads.
3. no internet required.
4. user friendly.
How to use this App :

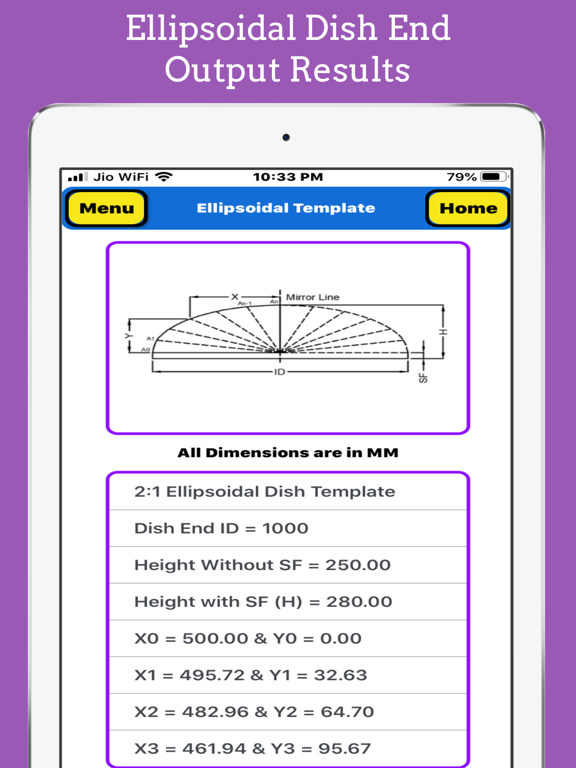

You have download and install this app in your device from the Apple app store. after installing this app you have to launch this app to open input screen of this app. first study the drawing above input pannel for understanding notations and enter required input data as per your requirement and click on calculate button to get out marking of ellipsoidal head template marking and by using this marking points you can easily layout your template for the ellipsoidal head.
you can select any no of development lines for calculating layout markings or enter any no o lines as per your requirement. this app calculates marking for half section so use the same marking for the other half section because they are identical to each other.
Accuracy of Template is dependent upon no. of development lines you have selected so use optimum no of lines for more accuracy.
This app is helpful in day to day fabrication activity of pressure vessel, heat exchanger, storage tank, and any other process equipment manufacturing industry.
