ISO Fits
iOS Universel / Productivité

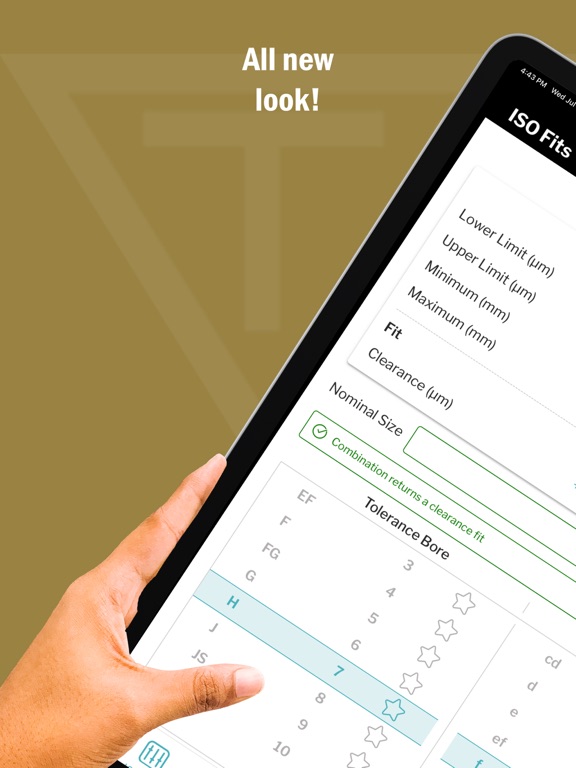

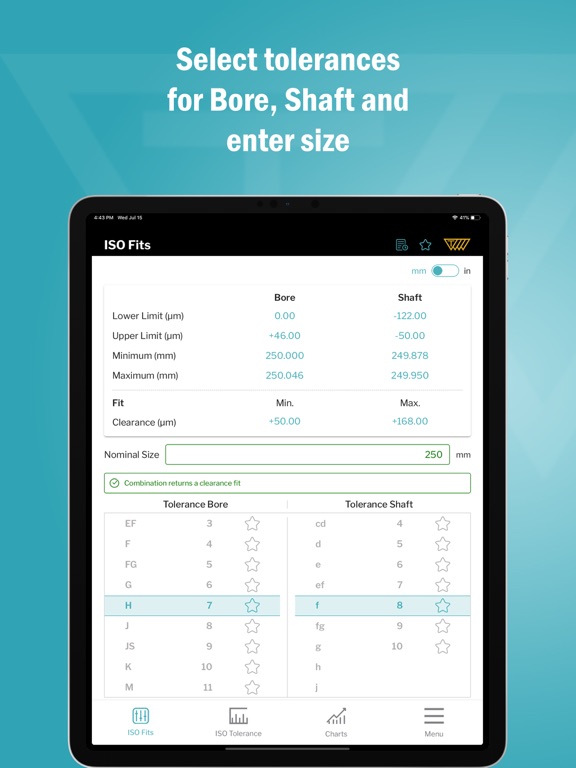

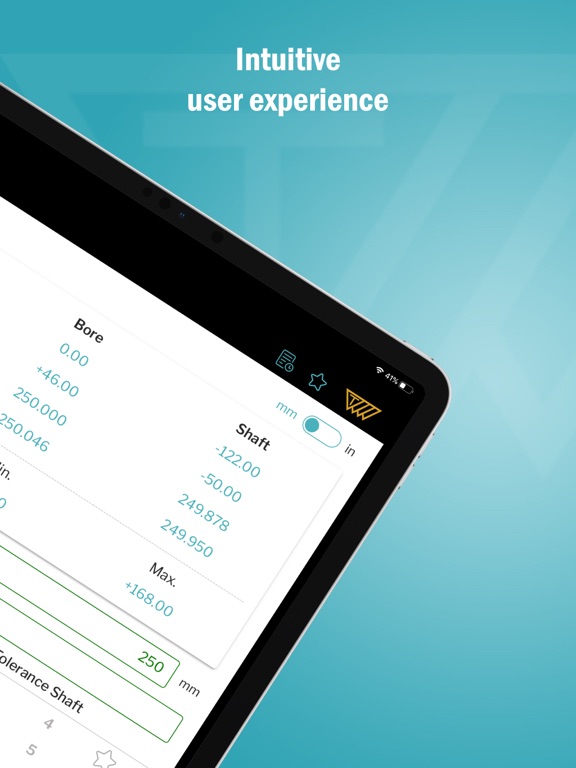

It includes the following features:- Fits calculation: Upon entering the nominal diameter (of either bore or shaft), users select their tolerance classes for bore and shaft. The app then provides the complete ISO fits definition with all relevant values.- Tolerances: Shows the tolerances for the most commonly used ISO tolerance classes.- switch between metric and inch version.- Charts: Shows the most common ISO tolerances classes in a diagram.- Videos: Features the automatically updated latest TSS youtube videos.The results of this application are based on DIN ISO 286Nominal dimension:1-3150mmfollowing tolerances included:Shaft: a9, a10, a11, a12, a13, b8, b9, b10, b11, b12, b13, c8, c9, c10, c11, c12, cd5, cd6, cd7, cd8, cd9, cd10, d5, d6, d7, d8, d9, d10, d11, d12, d13, e5, e6, e7, e8, e9, e10, ef3, ef4, ef5, ef6, ef7, ef8, ef9, ef10, f3, f4, f5, f6, f7, f8, f9, f10, fg3, fg4, fg5, fg6, fg7, fg8, fg9, fg10, g3, g4, g5, g6, g7, g8, g9, g10, h1, h2, h3, h4, h5, h6, h7, h8, h9, h10, h11, h12, h13, h14, h15, h16, h17, h18, js1, js2, js3, js4, js5, js6, js7, js8, js9, js10, js11, js12, js13, js14, js15, js16, js17, js18, j5, j6, j7, j8, k3, k4, k5, k6, k7, k8, k9, k10, k11, k12, k13, m3, m4, m5, m6, m7, m8, m9, n3, n4, n5, n6, n7, n8, n9, p3, p4, p5, p6, p7, p8, p9, p10, r3, r4, r5, r6, r7, r8, r9, r10, s3, s4, s5, s6, s7, s8, s9, s10, t5, t6, t7, t8, u5, u6, u7, u8, u9, v5, v6, v7, v8, x5, x6, x7, x8, x9, x10, y6, y7, y8, y9, y10, z6, z7, z8, z9, z10, z11, za6, za7, za8, za9, za10, za11, zb7, zb8, zb9, zb10, zb11, zc7, zc8, zc9, zc10, zc11Bore: A9, A10, A11, A12, A13, B8, B9, B10, B11, B12, B13, C8, C9, C10, C11, C12, C13, CD6, CD7, CD8, CD9, CD10, D6, D7, D8, D9, D10, D11, D12, D13, E5, E6, E7, E8, E9, E10, EF3, EF4, EF5, EF6, EF7, EF8, EF9, EF10, F3, F4, F5, F6, F7, F8, F9, F10, FG3, FG4, FG5, FG6, FG7, FG8, FG9, FG10, G3, G4, G5, G6, G7, G8, G9, G10, H1, H2, H3, H4, H5, H6, H7, H8, H9, H10, H11, H12, H13, H14, H15, H16, H17, H18, JS1, JS2, JS3, JS4, JS5, JS6, JS7, JS8, JS9, JS10, JS11, JS12, JS13, JS14, JS15, JS16, JS17, JS18, J6, J7, J8, J9, K3, K4, K5, K6, K7, K8, K9, K10, M3, M4, M5, M6, M7, M8, M9, M10, N3, N4, N5, N6, N7, N8, N9, N10, N11, P3, P4, P5, P6, P7, P8, P9, P10, R3, R4, R5, R6, R7, R8, R9, R10, S3, S4, S5, S6, S7, S8, S9, S10, T5, T6, T7, T8, U5, U6, U7, U8, U9, U10, V5, V6, V7, V8, X5, X6, X7, X8, X9, X10, Y6, Y7, Y8, Y9, Y10, Z6, Z7, Z8, Z9, Z10, Z11, ZA6, ZA7, ZA8, ZA9, ZA10, ZA11, ZB7, ZB8, ZB9, ZB10, ZB11, ZC7, ZC8, ZC9, ZC10, ZC11
Quoi de neuf dans la dernière version ?
Minor Enhancement
