Munters PsychroApp
iPhone / Productivité
Munters PsychroApp™ is the quick and easy psychrometric calculation tool designed for the iPhone and iPod touch which can run unmodified on an iPad too making accurate calculations of the thermodynamic properties of moist air easy.
Calculate the total, sensible, latent and moisture loads of any process more accurately than using psychrometric charts.

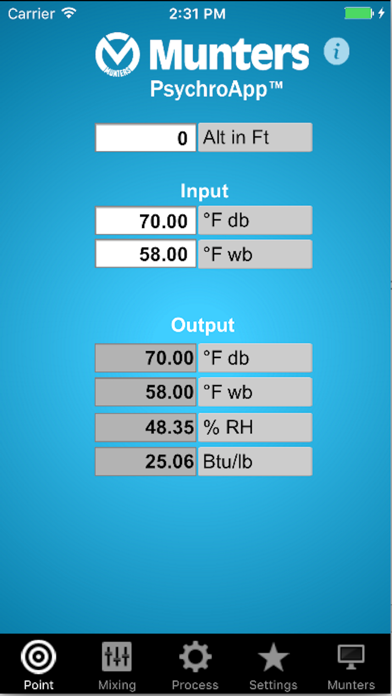

Munters PsychroApp™ provides quick and easy access to calculations such as dew point, grams per kg and grains per pound. Simply enter the temperature and relative humidity and Munters PsychroApp™ will output the corresponding dew point or grams per kg/grains per pound, giving you the insight you need for your job.
Munters PsychroApp™ uses ASHRAE equations and is the simple effective tool from a leader in energy efficient air treatment.
- English language imperial and SI units

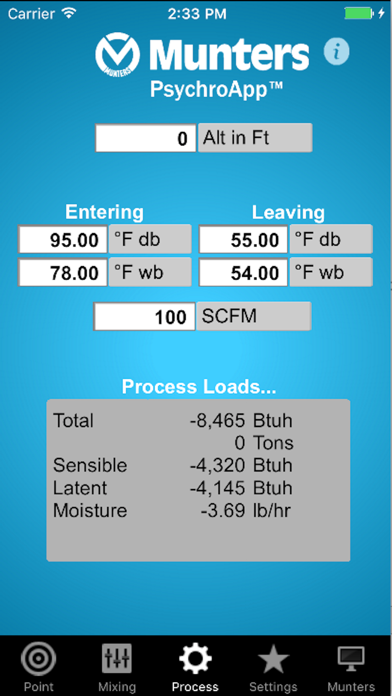

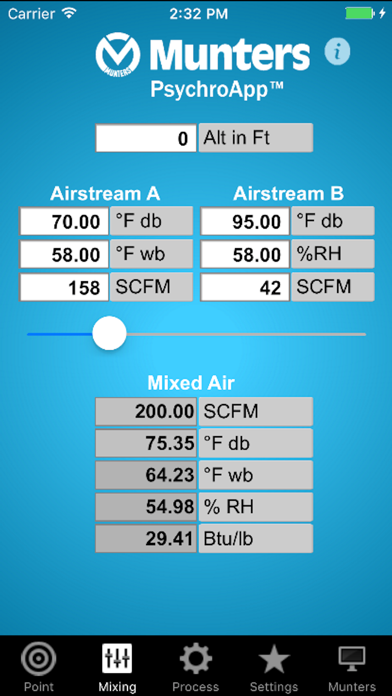

- Mixing and process screens
- Drybulb range -80°F to 400°F/-62°C to 200°C
- Dewpoint range -80°F to 200°F/-62°C to 93°C
The input and output values for PsychroApp™ can be set to different units providing an easy means to make conversions.
Numeric inputs are entered via a numeric keypad.
Air and Water Vapour Properties in PsychroApp™
Psychrometric
°Fdb / °Cdb - Dry Bulb Temperature
°Fwb / °Cwb - Wet Bulb Temperature
%RH - Relative Humidity
Btu/lb / kJ/kg - Enthalpy
°Fdp / °Cdp - Dew Point Temperature
gr/lb / g/kg - Humidity Ratio
ft≥/lb - m≥/kg - Specific Volume
in Hg VP / mm Hg VP - Vapour Pressure
lb/ft³ / kg/m³ - Density
PPMw - Parts Per Million by weight
PPMv - Parts Per Million by volume
gr/ft³ / g/m³ - Absolute Humidity
Pressure
Alt in Ft / m - Altitude (elevation)
psia / kPa - Absolute Pressure
PsychroApp™ is registered software from Munters - the leading energy efficient air treatment company
Quoi de neuf dans la dernière version ?
This update from Apple will improve the functionality of this app. No new features are included.
Added additional language support
