Max Zs Values
iOS Universel / Références
Calculate and look up the maximum permitted Zs value ( earth loop impedance ) to BS 7671. Max Zs Values also includes the 80% temperature adjusted values and a some MCCB 60947-2 manufacture Zs charts.
- 100% BS 7671 Zs Values
- 80% On Site Guide Zs Values
- Printable 60947-2 MCCB Zs Tables
- 0.4 (s) second disconnection times
- 0.2 (s) second disconnection times
- 5 (s) second disconnection times
> Common BS EN Devices:

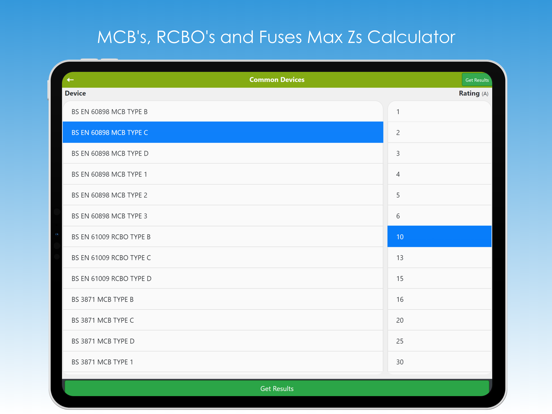

Scroll through the list of protective devices and select the device rating to calculate the maximum permitted Zs value for your selected protective device and rating combination.
> 60947-2 MCCB's Zs Tables:
Look up the maximum permitted Zs tables for a selection of MCCB manufacture devices (some).
Maximum Zs Features:
+ Maximum Disconnection Times
+ BS 7671 18th Edition Zs Tables
+ Fuse's
+ MCB's
+ RCBO's
+ RCD's in TT earthing systems
+ Max REC Ze values
+ 100% values
+ 80% values
+ 0.4 second disconnection times
+ 0.2 second disconnection times
+ 5 second disconnection times
+ Uo 55v (U 110v) single phase and Uo 63.5v (three
phase) Zs values
+ BS EN 60947-2 MCCB manufacture device charts
(some)
There is now a new "Zs Converter" to convert old Zs values to the new 18th edition 230v Cmin Zs values.
A maximum Zs calculator for iPhone and iPad.
Check out our collection of electrical apps such as the "Pro Certs" Electrical Certification App for iPad.
Quoi de neuf dans la dernière version ?
- Added Schneider TeSys MCCB max Zs table.
- New PDF viewer to fix the pinch/zoom/scroll bug when viewing PDF tables.
- A few UI improvements.
