This is the companion app to Aeroscope, the portable wireless oscilloscope probe. It requires Aeroscope hardware for full functionality.

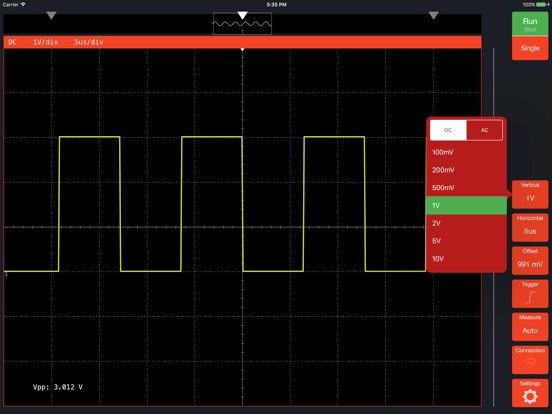

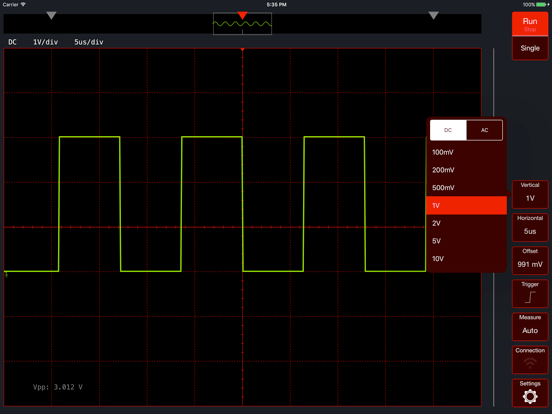

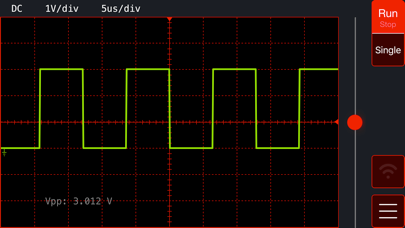

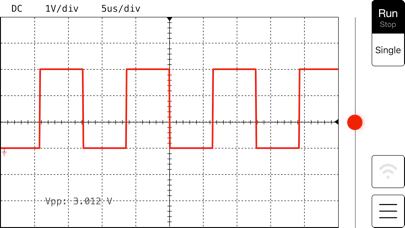

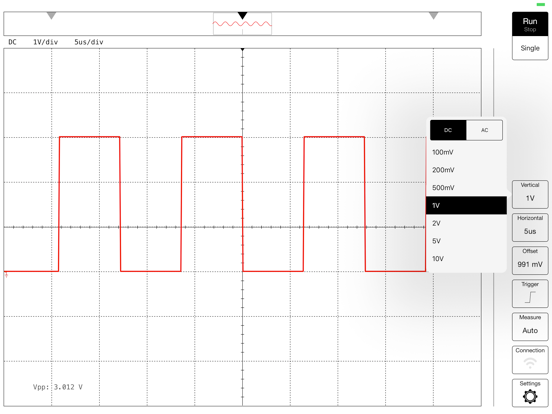

The Aeroscope App allows you to wirelessly connect to any Aeroscope oscilloscope probe over Bluetooth LE. Once connected, you can start and stop acquisition, change horizontal and vertical resolution, and plot acquired data.

Aeroscope Specs:
- Sample Rate: 100 MSPS
- Analog Bandwidth: 20 MHz
- Input Impedance: 1 Mohm || 17 pF
- Voltage Resolution: 100 mV/div - 10 V/div
- Measurable Input Voltage Range: +/- 40 V
- Maximum Rated Input Voltage: +/- 48 V
- Channels: 1
- Sample Resolution: 8 bits
- Memory Depth: 4k samples
- Wireless Protocol: Bluetooth LE (Bluetooth 4.0)
- Wireless Range: 100+ ft / 30+ m

En voir plus...

Quoi de neuf dans la dernière version ?

This update from Apple will improve the functionality of this app. No new features are included.

This version revamps the touch interface for smoother operation implements various bug fixes.
