Azimuth Mount Planner

iPhone / Utilitaires

Azimuth Mount Planner is a field-focused utility built for wireless installation crews, foremen, and project managers to plan sector mount layouts before installation.

Designed from real field experience, the app helps crews evaluate sector azimuths against common tower and mount configurations to determine the best practical layout while reducing pivot, skew, and the risk of expensive rework.

Use Azimuth Mount Planner to:

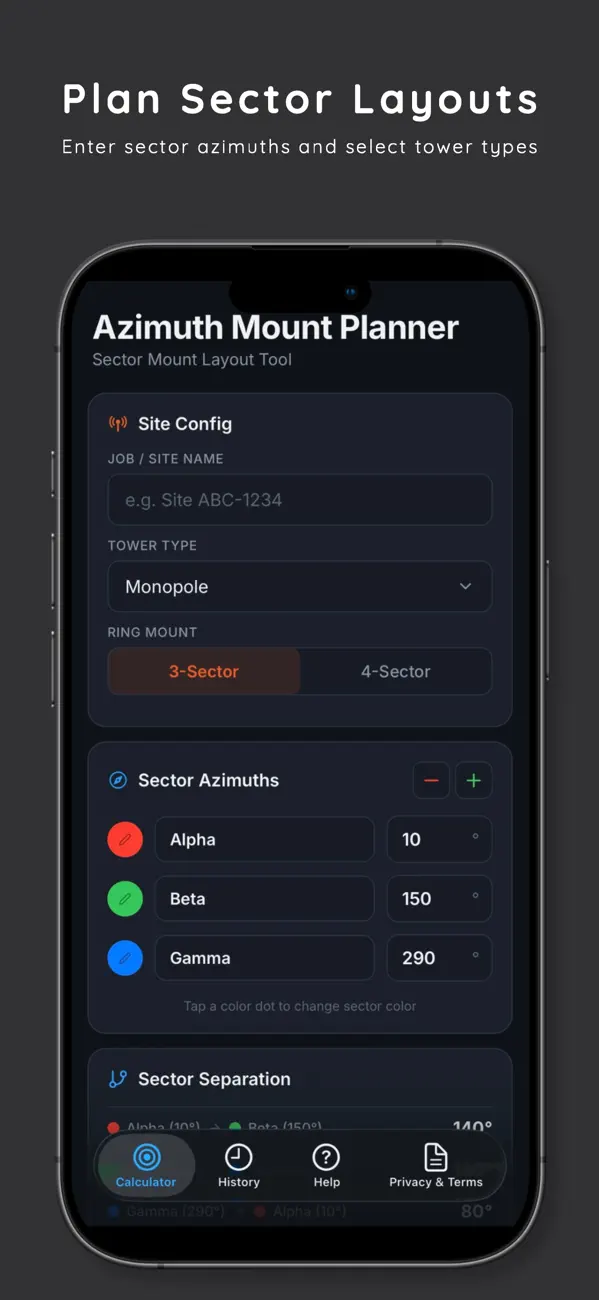

Enter sector azimuths quickly in the field
Evaluate 3-sector and 4-sector ring mount layouts
Check self-support and guyed tower leg-based layouts

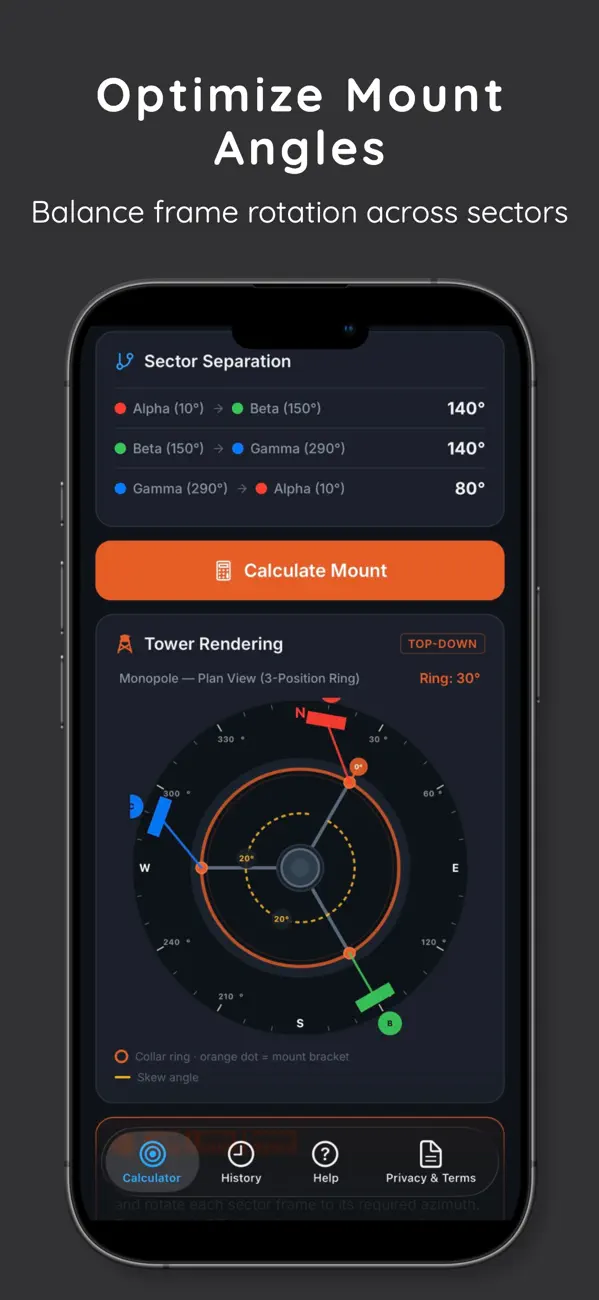

Minimize required pivot angles and mount offset
Identify when a layout is within spec or exceeds the allowed limit
Save job notes for site-specific planning and field reference

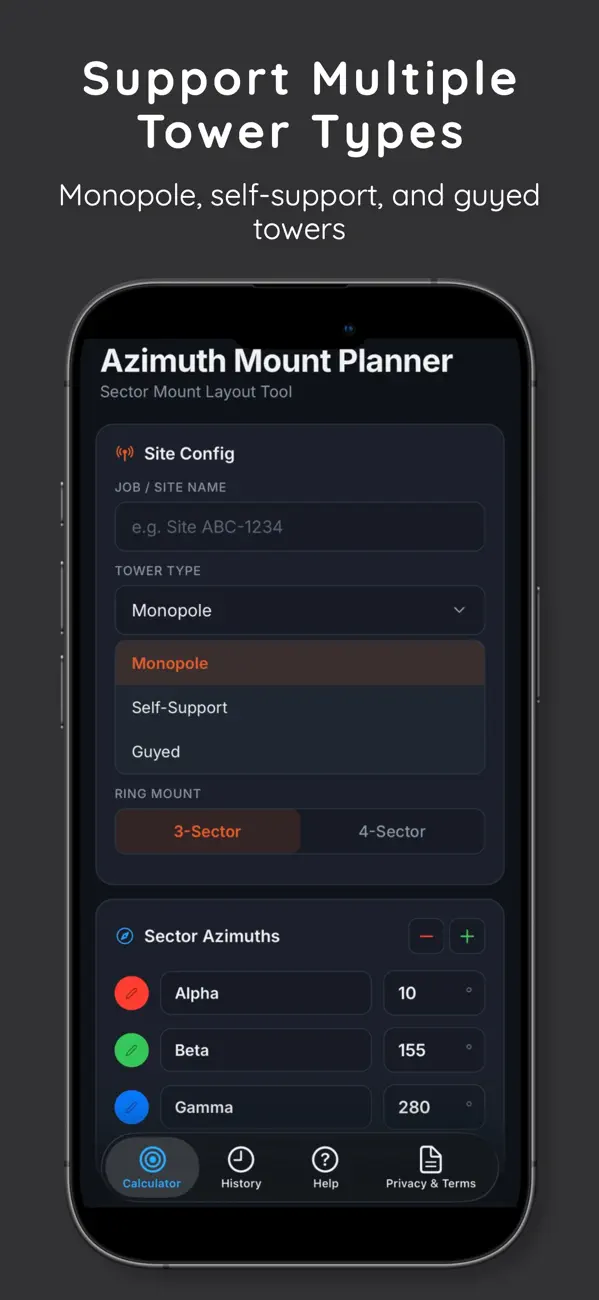

Azimuth Mount Planner is built to support:
Monopole ring mounts
Self-support towers
Guyed towers

The app evaluates the selected structure type and returns the best practical fit based on the entered azimuths and mount geometry.
Built for the Field

This app was created by a fellow telecommunications field installer to help crews make better mount layout decisions before problems become costly labor, equipment, and rework.

Important
Azimuth Mount Planner is a planning and calculation aid only. All final installation decisions must be independently verified in the field based on carrier requirements, engineering direction, site-specific conditions, hardware capability, and installer judgment.
