Loopworks Measure™
Professional hearing loop measurement and commissioning, powered by Ampetronic.

Overview
Loopworks Measure combines a dedicated receiver and intuitive iOS app to deliver accurate, standards-based measurement of hearing loop (induction loop) systems.
Designed for both experienced engineers and occasional users, the app guides you through testing, commissioning and reporting - in line with IEC 60118-4.

IMPORTANT
Designed for iOS 15.0 or newer, the Loopworks Measure App will not function without the Loopworks Measure Receiver R1 or R2 hardware.

Hardware Requirement
Compatible Loopworks Measure Receivers can be purchased from your local distributor or www.ampetronic.com
R1 Receiver – supports 3.5mm and Lightning connections (via genuine Apple Lightning to 3.5mm adapter)
R2 Receiver – upcoming model supporting 3.5mm, Lightning and USB‑C connections (using appropriate genuine Apple 3.5mm adapters)

Measurement & Performance

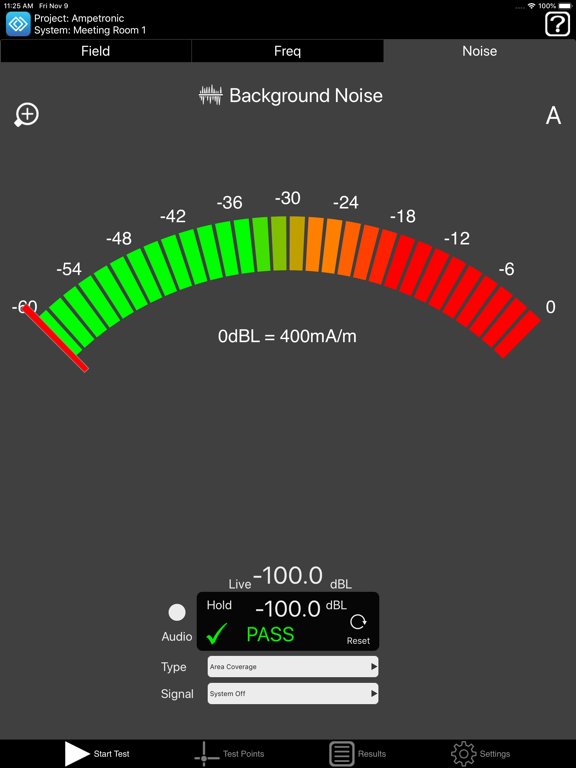

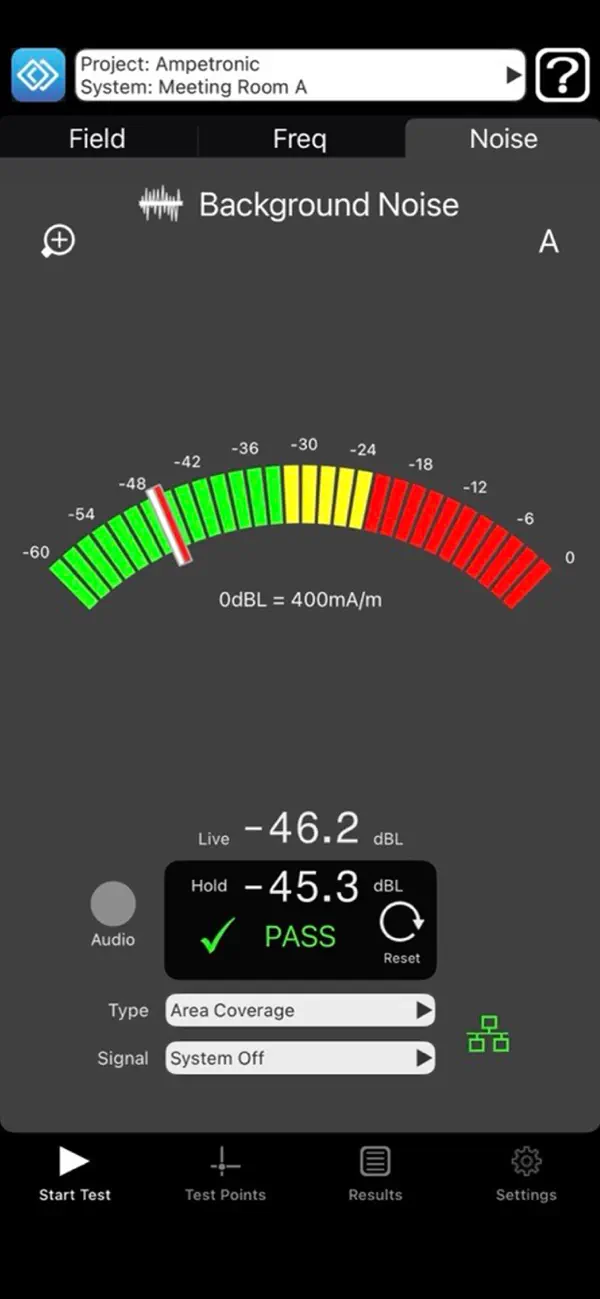

•Field Strength Meter (FSM), Background Noise and Frequency Response measurement (IEC 60118-4 compliant)
•High-resolution digital metering (±0.1 dB)
•Simple and advanced views for fast qualification or detailed analysis
•Use the receiver as a loop listener, including in locked screen mode

Workflow, Control & Reporting
•Guided workflows for site assessment, testing, commissioning and service verification
•LoopLink integration: directly connect to compatible Ampetronic C, D and T Series drivers to control test signals, adjust current and frequency response, and see instant feedback - all within the app, without returning to the amplifier
•Sync results with the Loopworks platform for storage, analysis and sharing
•Generate commissioning reports and compliance certificates
•Work offline and sync when a connection is available
•Record audio samples and access in-app guidance and support

Loopworks Platform
Your measurements don’t stop at the app:
•View and analyse results online
•Collaborate across your organisation
•Pre-configure projects and test points before site visits
•Generate reports and documentation for compliance and handover

Quoi de neuf dans la dernière version ?

Loopworks Measure v4.0.0. is a major update which introduces support for Apple USB-C devices, iOS & loop drivers whilst introducing a range of new features and enhancements.

What's New:
•Support for upcoming R2 receiver with USB‑C connectivity (via genuine Apple adapters)
•Tri-tone frequency response testing (W5-2)
•New Simple Frequency response view for faster system qualification
•Improved field strength accuracy with noise filtering (including mains hum rejection)
•Enable "Listening Mode" in locked screen by allowing audio to continue and the R1 to be used as a Loop Listener

Improvements:
•Calibration system enhancements

Fixes:
•Resolved issues with frequency response mode switching and data visibility
•Fixed calibration and audio level issues on newer iPadOS versions
•Improved receiver connection reliability
•Addressed crashes when accessing saved results
•Additional bugs fixes
