Pressure Vessel Pro - Pressure vessel calculations for iOS.

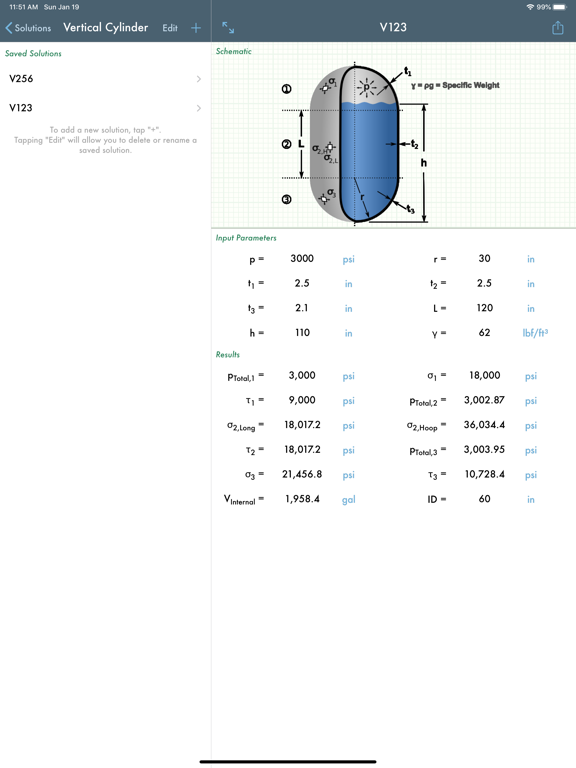

The easiest way to do basic pressure vessel stress calculations. Simply select from the available geometries, enter in the required dimensions and the answers will be generated complete with the formulae. You can also easily print or email a PDF of your results along with a schematic of the pressure vessel.

Pressure Vessel Pro Features:
- Universal - designed for use on all sizes of iPhone, iPod Touch, and iPad
- Share or print a PDF report of the results
- Extremely flexible unit system. Choose Metric, English or mix and match units.
- Save multiple cases for later reference
- Tap a cell to show detail and formulae

The properties calculated include are:
• Longitudinal Stress
• Hoop Stress
• Shear Stress
• Volume
• ASME Boiler & Pressure Vessel Code Design Thickness
• ASME Boiler & Pressure Vessel Code Design Pressure

Pressure Vessel Pro includes the Following Integrated Calculations:
• Vertical tanks
• Horizontal tanks
• Spherical tanks

Pressure Vessel Pro includes the Following Component Stress Calculations:
• Cylinders
• Hemispherical Heads and Tanks
• Elliptical Heads
• Torispherical Heads

Pressure Vessel Pro includes the Following ASME Boiler and Pressure Vessel Code Section VIII, Division I Design Calculations:
• Cylinder Thickness
• Cylinder Pressure
• Hemispherical Heads and Tanks Thickness
• Hemispherical Heads and Tanks Pressure
• 2:1 Elliptical Head Thickness
• 2:1 Elliptical Head Pressure
• ASME (dished) Heads Thickness
• ASME (dished) Heads Pressure
