Scala Architectural Scale

iOS Universel / Utilitaires

Let Scala Architectural and Engineering Scale change the way you measure printed drawings on the go and at your desk. With fixed and variable scales there is no limit to measuring a printed drawing of any scale, even if the scale is unknown.

FIXED SCALES
If you know the scale of a drawing, place your device on the drawing, scroll to the scale of the printed drawing and watch the chosen scale slide in.

VARIABLE SCALES
If the scale of a drawing is unknown, slide your finger on the variable scale and match the scale of one known element, lock it and use it to measure all elements on that drawing.

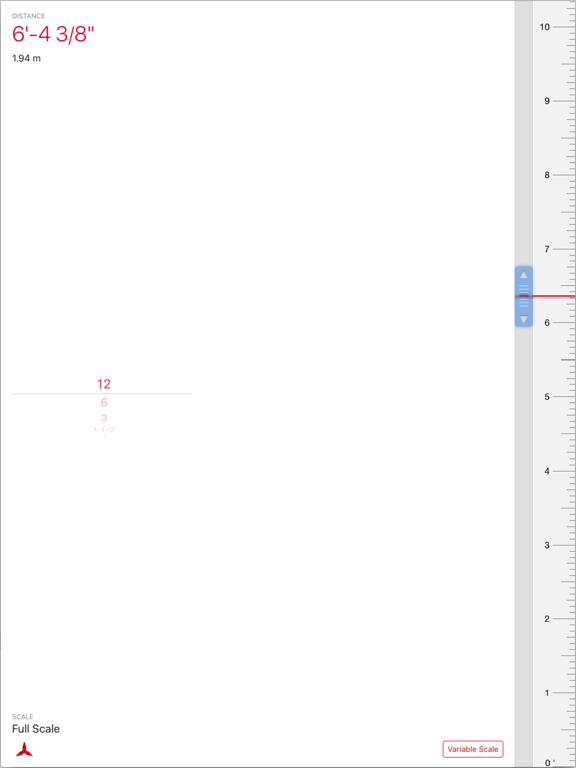

MEASURING
Slide the measurement slider in fixed or variable scale modes, along the scale to see the desired measurement displayed.

SECONDARY UNITS
Choose secondary units to be displayed while measuring, to quickly convert between metric, decimal feet and feet and inches.

PRECISION
Control the precision of the measurement units.

—-—
Scala Free Version includes:

ARCHITECTURAL
Fixed Scales: Full Scale (12”=1’-0”), 6”=1’-0”, 3”=1’-0”, 1 1/2”=1’-0”, 1”=1’-0”, 3/4”=1’-0”
Variable Scale Range: Between full scale and 1/32”=1’-0”

ENGINEERING
Fixed Scales: 1”=10’, 1”=20’, 1”=30’, 1”=40’, 1”=50’ and 1”=60’
Variable Scale Range: Between 1”=10’ and 1”=300’

METRIC
Fixed Scales: 1:1, 1:2, 1:5, 1:10, 1:20, 1:25
Variable Scale Range: Between 1:1 and 1:1000

Scala Full Version includes all scales above plus the following:

ARCHITECTURAL
Fixed Scales: 1/2”=1’-0”, 3/8”=1’-0”, 1/4”=1’-0”, 3/16”=1’-0”, 1/8”=1’-0”, 3/32”=1’-0”, 1/16”=1’-0”, 1/32"=1'-0"

ENGINEERING
Fixed Scales: 1"=80', 1"=100', 1"=200', 1"=300'

METRIC
Fixed Scales: 1:30, 1:40, 1:50, 1:75, 1:100, 1:125, 1:200, 1:250, 1:300, 1:400, 1:500, 1:1000

—-—

Quoi de neuf dans la dernière version ?

Scala updated for iPhone Air compatibility.
