SF50 TOLD
iOS Universel / Utilitaires

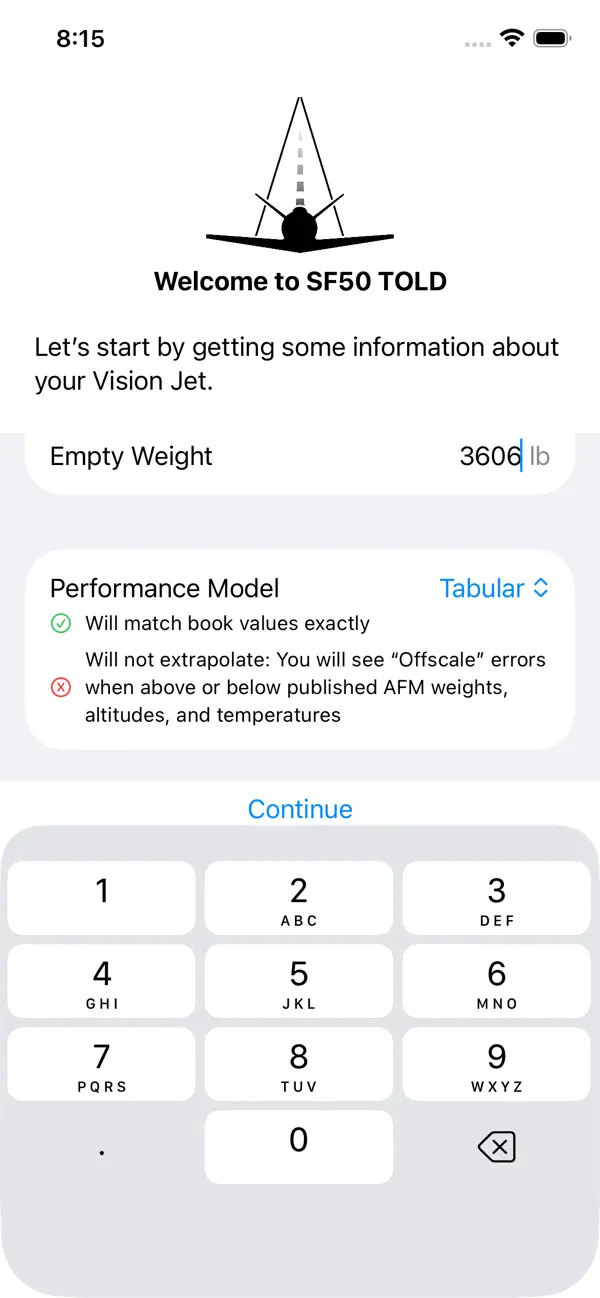

SF50 Takeoff and Landing Data helps Cirrus SF50 Vision pilots do their performance calculations. Simply launch the app, enter your weights, and the app will calculate how much runway you need to take off or land in your Vision Jet.
SF50 TOLD supports both automatic and manual weather entry, custom safety factors, non-normal configurations (such as FLAPS 50 ICE or FLAPS 0), and runway contamination. All data comes from the SF50 G1 or G2+ Airplane Flight Manual* and is interpolated for current conditions.
*This app has not been approved by the FAA or by Cirrus Aircraft as an official source of performance information. It is your responsibility to ensure that the performance data you use is accurate for current conditions.
AFMs:
Aircraft Serials with Cirrus Perspective Touch Avionics System and FL280 Maximum Operating Altitude
P/N 31452-001
Revision A1
Aircraft Serials with Cirrus Perspective Touch+ Avionics System and FL310 Maximum Operating Altitude
P/N 31452-002
Revision 4
Airplane Flight Manual Supplement for Updated Thrust Schedule
P/N 31452-111
Revision 1
Quoi de neuf dans la dernière version ?
CLIMB AND GO-AROUND PROFILES
After computing takeoff or landing performance, you can now view a cross-section profile of the aircraft's climb path relative to terrain and obstacles. For takeoff, choose between runway heading, a vectored heading or track, or a published SID to see how the aircraft climbs along that route. For landing, view the go-around climb path along the published missed approach procedure or a vectored heading. The profile chart shows terrain elevation, obstacles, waypoints with altitude restrictions, and highlights any terrain conflicts along the route.
Climb profile calculations incorporate winds aloft data. Obstacle and instrument procedure data is sourced from the FAA's Digital Obstacle File and Coded Instrument Flight Procedures and is currently available for US airports only.
TAKEOFF/LANDING DISTANCE VISUALIZATION
A new satellite map view shows the required takeoff or landing ground roll overlaid on the actual runway. A colored chevron pattern indicates whether the required distance fits within the available runway. For takeoff, blue means sufficient runway is available and red means insufficient. For landing, blue means sufficient runway is available from the touchdown zone, yellow means sufficient runway is available from the threshold, and red means insufficient runway is available. Any runway shortening due to NOTAMs is highlighted on the map.
TERRAIN DATA
The app can now download worldwide terrain elevation data for use with the climb and go-around profile views. Terrain regions can be downloaded and managed in Settings. A status indicator on profile views shows whether terrain, obstacle, and instrument procedure data are available and current for the selected airport.
OTHER UPDATES
- Runway shortening from NOTAMs can now specify whether the closure is at the departure end or the threshold
- Enroute obstacle climb gradient and rate data added for normal and icing conditions across all aircraft generations
BUG FIXES
- Fixed app hangs caused by airport search sorting and nearest-airport queries running on the main thread
- Fixed repeated database re-faults when displaying nearby airports after location updates
