VibraPad
iPad / Education
VibraPad is an educational App to teach the basics of vibration analysis for rotating machinery monitoring, diagnostics and maintenance. It contains a library of machines including motor, pump, fan, blower, gearbox, belt derive, and bearings.

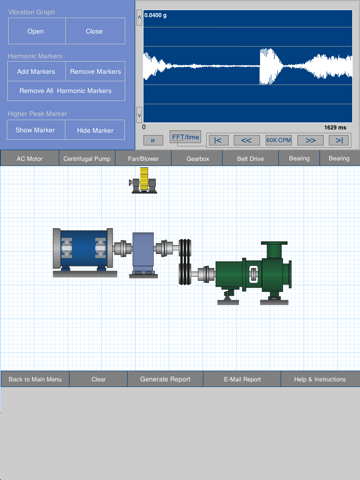

The user can easily construct a system by connecting the components from the library, define the specification for each part of the system, and see the fundamental frequencies of the system in details and also on the vibration signal spectrum.
The App can acquire the vibration signal through an extra hardware that can be purchased separately. However, without the extra hardware, the user can still acquire the sound signal of the machine through the mic of the iPad and the signal will be shown in the time- and frequency-domain. The harmonics of the machine frequencies can be also shown on the frequency signal.
Features:
- A library of machine components: motor, pump, fan, blower, gearbox, bearings, and belt drive
-easy touch and drag-based assembly of the system using the library components
- acquiring the sound signal of the machine through the iPad built-in Mic
- Capability of the external accelerometer data acquiring if purchased with the extra hardware (contact Motionics for more info)
- Live monitoring of the acquired (sound or vibration) signal in time and frequency
- Zoom option for the signal in time and frequency domains
- Fundamental frequency calculator for all machine components in the library
- Report generation for all the machine components with fundamental frequencies
- Report E-mail option
- Automatic higher peak finder for the frequency signal
******** Disclaimer ***********
VibraPad is intended for educational purposes. Although the calculations done by this application were made with great care, it may contain errors or inaccuracies. Using the results of the calculations is the responsibility of the user
Quoi de neuf dans la dernière version ?
Updated for latest iOS.
