A360 Display

iOS Universel / Musique

A360 Display enhances the user interface of the Aviom A360 Personal Mixer with customized views that show the volume level, stereo placement, tone, reverb, and metering information for every channel in your mix. There’s even an on-screen channel strip that shows all channel names in a single view.

With an iOS device placed in the A360’s accessory tray, musicians get a real-time visual display of the mix settings, without adding to the complexity of the personal mixer.

Main Features:
• Expands the A360 user interface with a graphical view of every channel in the mix
• Shows real-time metering for each mix channel

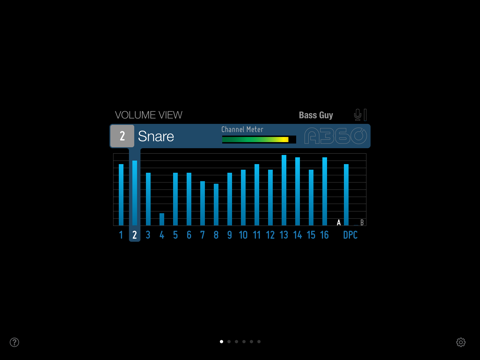

• Individual views for volume levels, stereo placement, tone and reverb, and channel names
• Allows the A360 Personal Mixer itself plus each mix channel, group, and preset to be named
• Custom names save as part of a mix preset

A360 Display uses Aviom’s Pro16e™ A-Net® technology that is built into the A360 Personal Mixer and the D800 A-Net Distributors for two-way seamless connectivity over a Wi-Fi network. A360 Display communicates with a standard Wi-Fi router connected to the Ethernet network port on the rear panel of the D800 or D800-Dante A-Net Distributors.

There are six main views in A360 Display that update in real time as you make changes to your mix on the A360 Personal Mixer:
• Channel View
• Meters View

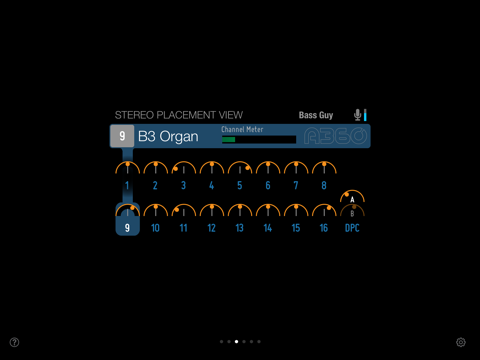

• Stereo Placement View
• Tone & Reverb View
• Master View
• Channel Names View

Each D800 A-Net Distributor in a personal mixing system can support up to eight A360 Personal Mixers and eight iOS devices; the Wi-Fi router can support up to four A-Net Distributors.

- System Requirements -
Using the A360 Display app with your A360 Personal Mixer requires an iOS device, a D800 or D800-Dante A-Net Distributor, and a standard Wi-Fi router.

- Firmware Requirements -
To use A360 Display, the A360 Personal Mixer must be running firmware version 3.27 or higher; the D800 or D800-Dante must be running firmware version 3.30 or higher. Firmware updates are available in the Support section of the Aviom website.

Compatible with iOS 7.0 and later

Quoi de neuf dans la dernière version ?

This app has been updated by Apple to display the Apple Watch app icon.
