Fabrication Flat Pattern
iOS Universel / Productivité
Revolutionize your fabrication workflow with our comprehensive fabrication layout app! Designed to accelerate your fabrication process while ensuring unparalleled accuracy, this tool is a game-changer for professionals in pressure vessels, process equipment, welding, piping, insulation, ducting, heavy equipment, storage tanks, agitators, mechanical equipment, structures, industrial fabrication, heat exchangers, and more.
Unlock a myriad of Fabrication Flat Pattern Options, including:

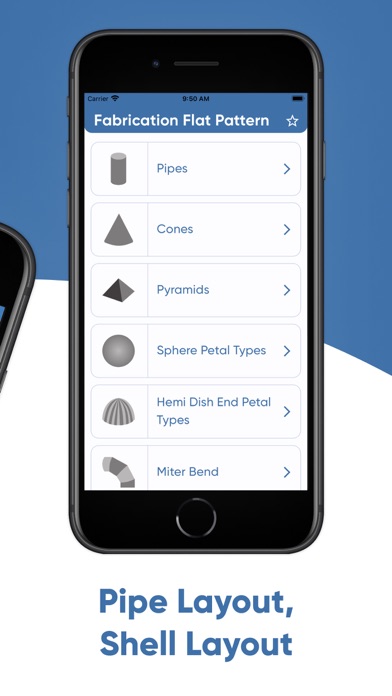

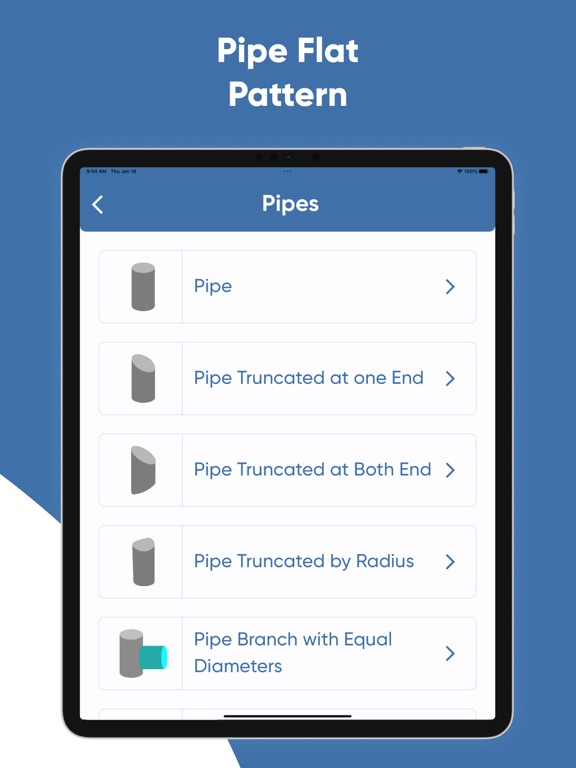

Pipe Layout, Shell Layout, Pipe Flat Pattern
Truncated Pipe Layout, Pipe Cut at Any Angle Flat Pattern
Pipe to Pipe Intersection with Equal Diameters or Pipe Branch Connection Flat Pattern
Eccentric Cone Layout Flat Pattern
Miter Bend Layout Flat Pattern
Screw Flight Layout Flat Pattern
This app caters to a wide spectrum of shapes such as cones, shells, pipes, pipe branch connections, full cones, half cones, truncated cones, square to round transitions, round to square transitions, rectangular to round transitions, round to rectangular transitions, pyramids, truncated pyramids, spheres, dish ends, and much more.
Key Features:
Minimize fabrication time
Increase accuracy in layout development
Ideal for Production Engineers, Fabrication Engineers, Planning Engineers, Costing and Estimating Engineers, Project Engineers, Fabrication Contractors, Fabrication Supervisors, Fabrication Fitters, and Fabrication Workers. Elevate your fabrication game with this must-have tool for the modern industrial professional!
Quoi de neuf dans la dernière version ?
added result sharing feature
