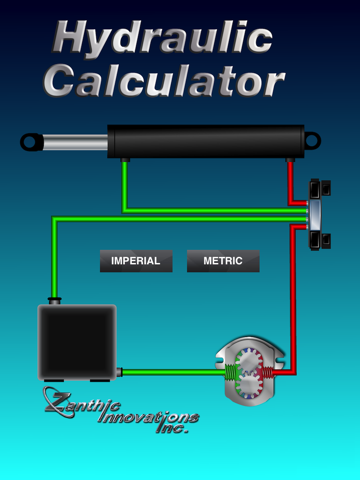

Hydraulic-Calculator
iOS Universel / Productivité
The Hydraulic Calculator includes many basic hydraulic calculations.

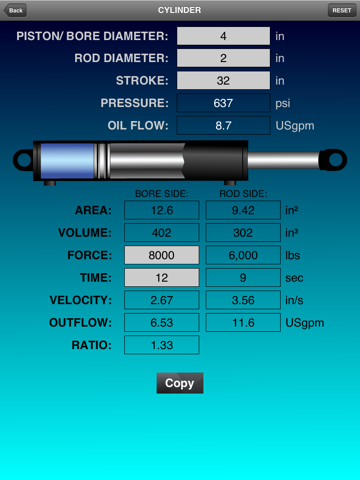

Cylinder calculations can be done to solve for extension / retraction forces or speeds.
Pump calculations can also be done by entering combinations of displacement, oil flow and pressure to determine values for speed, torque and power. Both mechanical and volumetric efficiencies can be used in these calculations.
Hydraulic line calculations can also be done for fluid velocity, cross sectional area, Reynolds number and pressure drop. The free version is limited to 1” or 25mm line diameters.
Orifice calculations can also be made using three parameters: Oil Flow, Orifice Diameter and Pressure Drop. Enter any two values and have the third calculated.
Speed - Torque - Power page: Enter any two values have the third calculated. Unit conversions built into the page.
Calculations can be done in either metric or imperial units. Basic unit conversions are also available.
With the in-app purchase, all features from the Hydraulic Calculator will become active:
Cylinder characteristics can be entered in a number of different ways. Enter hydraulic flow, cylinder velocity, or stroke time and calculate the other two. User can also enter Hydraulic pressure, extend force or retract force and have the other two calculated.
One application for this is to measure the stroke time of a cylinder. By entering this with the bore diameter and stroke length, the system flow is calculated.

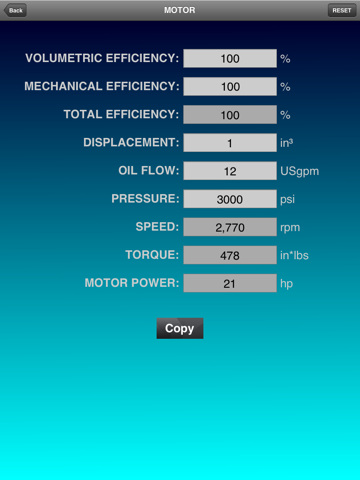

Full motor & pump calculation page. The motor & pump calculator are flexible tools in which the user can enter any three known values to have the remaining values calculated. Values include: displacement, oil flow, pressure, rotational speed, torque, and motor power. Both mechanical and volumetric efficiency values are used.
Results can be copied to the clipboard in a text format for use in e-mails, messages, or other documentation.
Quoi de neuf dans la dernière version ?
- Unit Conversions : Add Power, Volume, Temperature Conversions.
- Liner Interpolation.
- Hex/Decimal.
- Voltage-Current-Resistance
