Sheet Metal Flat Pattern Calc
iOS Universel / Utilitaires
Need the flat blank dimensions for a cone, cylinder, or segmented elbow before cutting sheet metal? Enter your finished part geometry and instantly get the developed flat pattern — arc radii, arc angles, gore layouts, and seam allowances. No more hand-drafting on the shop floor.
WHAT IT CALCULATES:

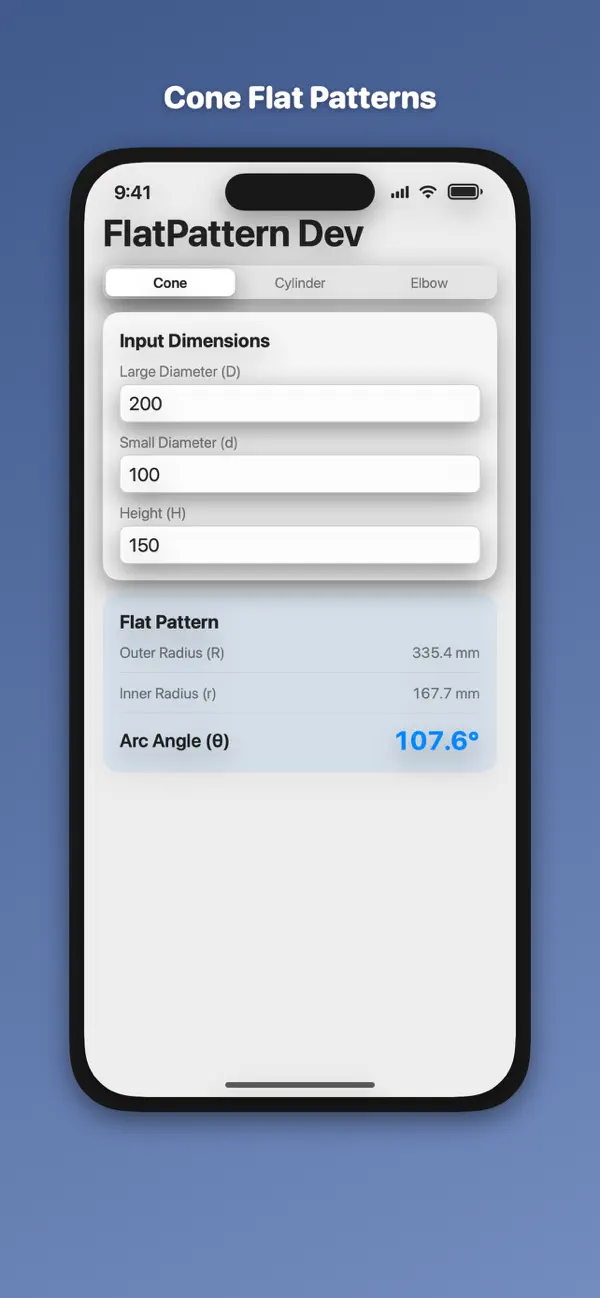

Cones:
- Flat blank inner and outer radius
- Blank arc angle
- Blank arc length
- Developed (flat) blank dimensions

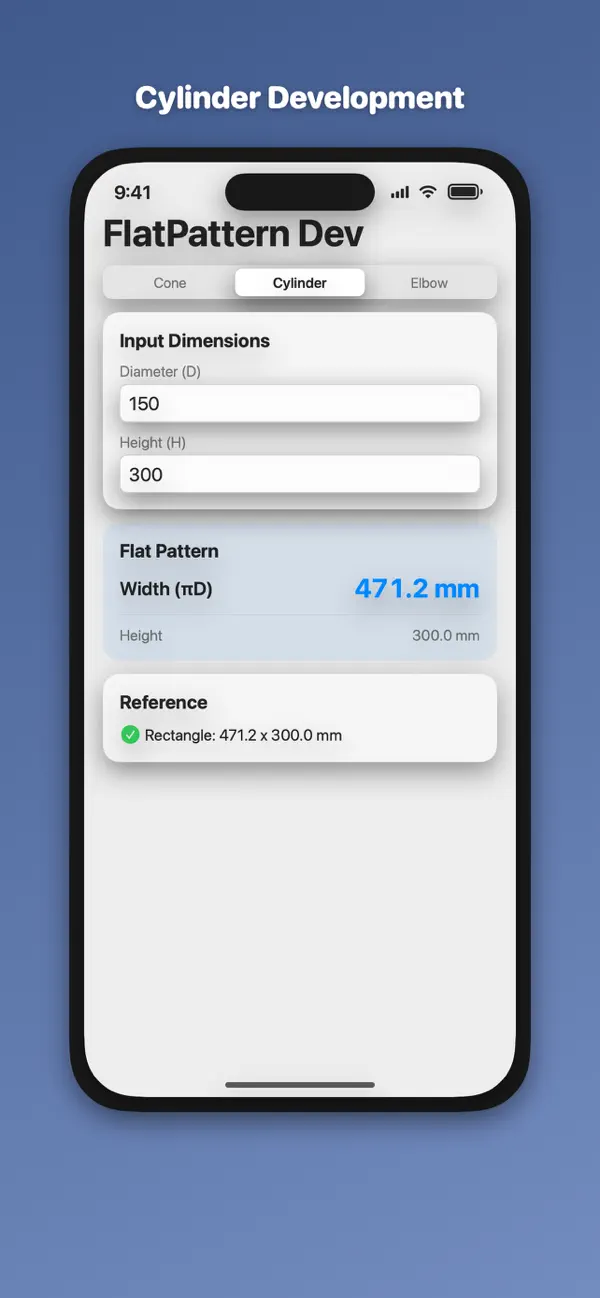

Cylinders:
- Circumference and blank width
- Flat blank length and height
- Material allowance for seams

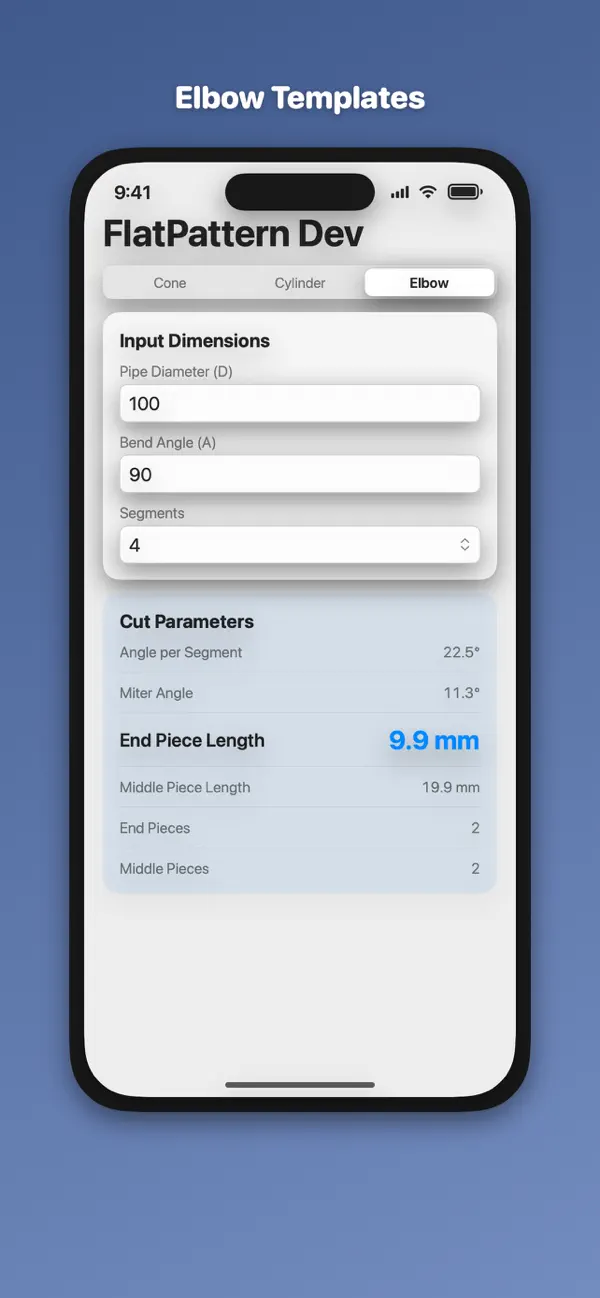

Elbows:
- Multi-piece elbow segment patterns
- Gore dimensions for each segment
- Throat and heel radius calculations
KEY FEATURES:
- Imperial (in) and Metric (mm) unit support
- Cone, cylinder, and elbow pattern types
- Adjustable wall thickness and seam allowance
- Instant results as you type
- Clean, easy-to-read layout
- Works completely offline
- No account or login required
BUILT FOR THE SHOP FLOOR:
Whether you are a sheet metal worker, HVAC fabricator, or mechanical estimator, this app gives you accurate blank dimensions for cutting and rolling. Enter your finished part geometry and get your flat layout in seconds.
Calculations follow standard sheet metal development methods for right circular cones, cylinders, and segmented elbows.
Quoi de neuf dans la dernière version ?
Added a More Pro Tools section to discover related field calculators.
