ArrayLink
iOS Universel / Productivité

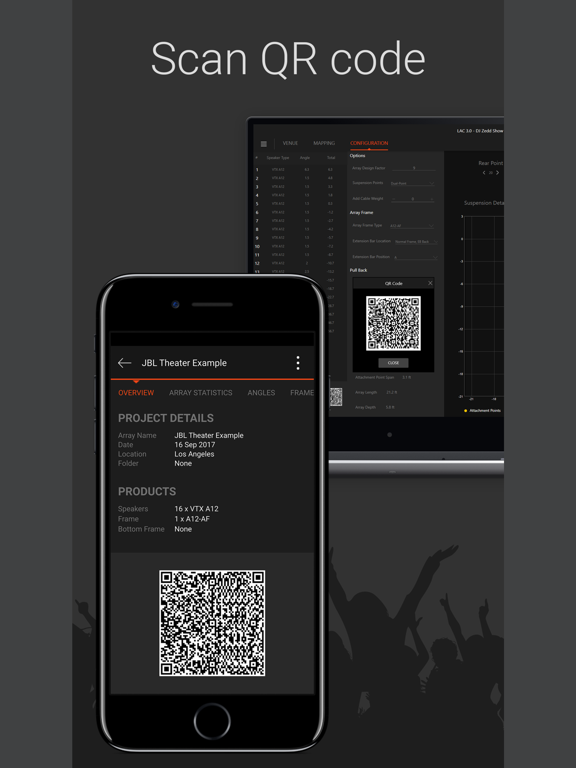

JBL ArrayLink is a mobile companion app that works in conjunction with JBL’s system design software apps Venue Synthesis and LAC-III to assist technicians deploying JBL VTX, VRX and SRX900 Series audio systems. ArrayLink uses a QR code system to transfer all array mechanical information from the design software to a mobile phone – this transfer is done directly and in real-time without the need for an internet connection. All relevant rigging and location information are presented in an easy-to-understand layout that can be used to mechanically deploy an audio system.
Features Include:
• Works in conjunction with JBL’s Venue Synthesis and LAC-III software

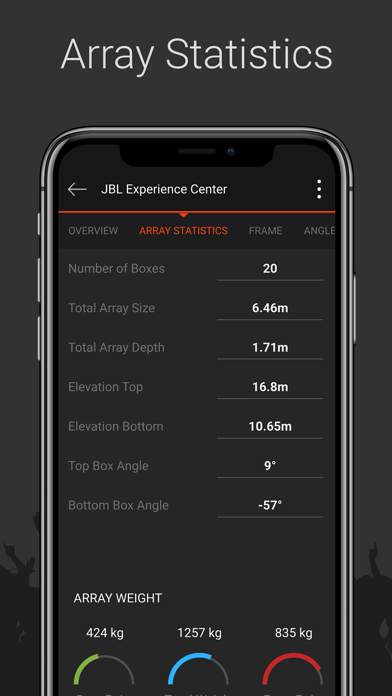

• Displays all relevant Array or System Group settings
• Built-in Inclinometer
• Built-in Noise Generator
• Projects Library stores and sorts all imported designs
• Options to share Groups and Arrays to other users
Supported JBL Products
VTX A12, VTX A8, VTX A6, VTX B15, VTX B18, VTX B28, VTX G28, VTX S28, VTX S25, VTX V20, VTX V25-II, VTX V25-II-CS, VTX F12, VTX F15, VTX F35, VRX928LA, VRX932LA-1, VRX932LAP, VRX915S, VRX918S, VRX918SP, SRX906LA, SRX910LA, SRX918S, SRX928S, AC15, AC16, AC18, AC25, AC26, AC28
Supported Configurations:
• Suspended and Mixed Suspended Arrays
• Ground Stacked Arrays
• Distributed Ground Subwoofer Arrays
• Point Source Speakers
Quoi de neuf dans la dernière version ?
NEW FEATURES AND IMPROVEMENTS:
• Added support for the SRX915SF and SRX918SF flown subwoofer models.
• Improved the scanning speed of QR codes by switching from an API based camera call to directly accessing the camera hardware
using device native frameworks.
• Array circuit colors were reverted to original color scheme.
• Updated the Help and Support Menu with the latest contact information.
BUG FIXES:
• Fixed an issue preventing large System Groups from being scanned in a reasonable time frame.
• Fixed an issue causing the app to display an incorrect Bottom Box Angle in some configurations.
• Fixed an issue causing the splash screen to flash briefly when opening the app.
• Fixed an issue preventing the Tone Generator from producing audio if silent mode was enabled on the device.
• Fixed an issue preventing users from properly selecting existing text when renaming items.
• Other minor UI fixes.
