Soundcraft ViSi Remote
iPad / Musique
Soundcraft ViSi Remote 3.6.2 is an iOS application that allows remote control of Soundcraft Vi, Si Compact, Si Performer, Si Expression and Si Impact mixing consoles wirelessly from an iPad device using no additional hardware other than a wireless router connected to the Harman HiQnet® Ethernet port of the console.
With ViSi Remote you are free to roam the venue and adjust mixes and other audio parameters directly from the iPad.
Applications:
• Optimise the front of house mix from anywhere in the room
• Set mic gains and 48V from the stage
• Adjust monitor levels while standing next to the artist
• Adjust channel strip settings remotely from the console
• Use to extend the fader count of an existing control surface
• Use in standalone (demo) mode for familiarisation with console functions
• Control a network of consoles, e.g., FOH and Monitor
• Provide a separate surface for DMX functionality (Si Performer only)
• Allow multiple users on the same console to control their own mixes
• Have a global metering overview or “meter bridge” as an extension of the console
ViSi Remote 3.6.2 Console Minimum Software Requirements:
(Latest software is available on the Soundcraft website)
Si Impact: V1.0 build 0010 or higher
Si Performer: V1.6 build or higher
Si Expression: V1.6 build or higher
Si Compact: V3.0 build or higher
Vi1/2/4/6: V4.9 or higher
Vi200: V6.4 or higher
Vi400/600: V6.3 or higher
Vi1000: V6.3 or higher
Vi2000: V6.3 or higher
Vi3000: V6.3 or higher
Vi5000/7000: V6.3 or higher
Note: For Vi & Si consoles, the latest software listed above is needed in order to access the full channel processing and metering functions. Older software versions would result in basic functionality with fader, mute, mix, and GEQ settings only.
Mute group functionality is only supported on Si V2.2 build1 or higher and on Vi V6.4.5.340 or higher.
ViSi Remote 3.6.2 iOS Compatibility:
iOS 12.0 or higher.
Functions controlled:
• Channel naming
• Input faders and mutes
• Bus, Master LR & Mono (C) and VCA master faders and mutes
• Channel strip settings, including:

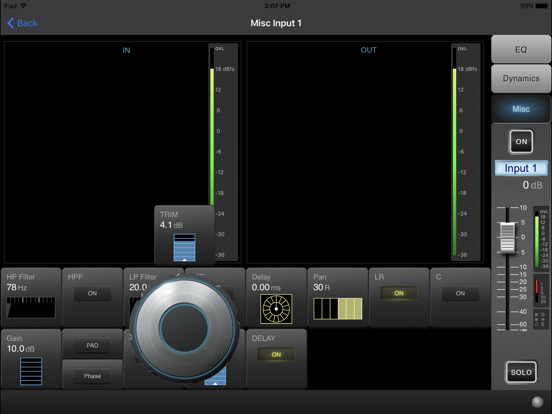

- Mic Gain, Digital Trim, and 48V
- Phase Invert
- HPF & LPF (HPF only on Si consoles)
- Delay
- Channel EQ with grabbable parametric EQ curve

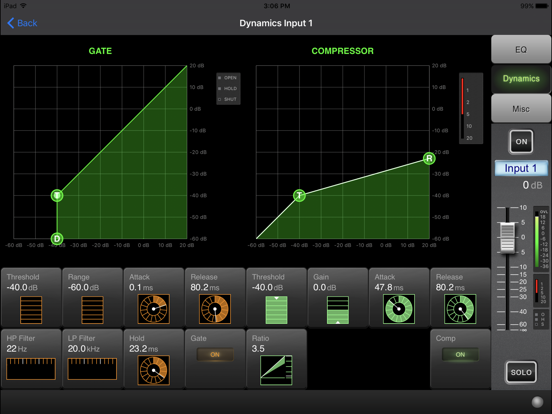

- Gate and Compression settings
- Pan
- LR and Mono (C) bus routing
• Graphic EQs on all bus outs
• Channel contributions to each Aux Mix
• Channel contributions to each FX bus (Si consoles only)
• Mix contributions to each matrix bus
• DMX Masters (Si Performer Only)
• Mute Group Masters (Requires Si software 2.2.1 or later and Vi V6.4.5.340 or higher; not supported on Si Compact; Vi1, Vi2, Vi4 or Vi6).
Quoi de neuf dans la dernière version ?
• Added new MUTE GROUPS control panel, accessed by MUTES button in top right of GUI, allowing remote activation of the 4 or 8 Mute Group Master console buttons from the iPad. (Requires Si software V2.2.1 or higher and Vi software 6.4.5.340 or higher).
• Improvements to the setup workflow for the USER fader tab: This now includes a drag & drop setup UI, allowing easier selection and addition of channels to the tab, re-ordering or deletion using drag & drop, and the ability to copy the complete INPUTS tab contents to the USER tab, which can then be edited to remove or re-order channels.
• Channel names are now displayed in the USER tab Setup list.
• Leaving the Bus Select page by pressing the LRC button now returns to the USER Inputs tab if it was previously selected.
• Fixed an issue with text readability in Dark Mode.
