SignalScope X
iOS Universel / Utilitaires
SignalScope X offers a range of powerful measurement and analysis tools to enhance your productivity in areas such as acoustics (sound and vibration), audio, electronics, and electroacoustics.
SignalScope X includes a free oscilloscope tool. SignalScope X makes additional tools available via 3 tiers of subscription-based tool sets to meet your basic, advanced, and professional needs. Each subscription works on your iPhone, iPad, and Mac.
Features:
- Analyze signals coming from the Mac or iOS device’s current audio input device.
- Assign engineering units to your input signals and calibrate external transducers for accurate measurements.
- Assign input channel units and sensitivities for individual USB Audio devices.
- Connect lab-grade microphones and sensors to your Mac, iPad, or iPhone with suitable interface hardware for precise measurements.
- SignalScope offers enhanced support for select hardware from Digiducer, The Modal Shop, and miniDSP.
- Nominal acoustic sensitivities included for iPhone and iPad built-in microphones, voltage sensitivities for headset input (including the standard Lightning-to-headset adapter).
- Manually switch between available audio input and output sources.
- Load microphone frequency response data (FRD) and apply frequency response correction (FRC) to FFT-based measurements.
- Manually adjust audio sample rates, even up to 768 kHz, depending on hardware.
- Save acquired measurement data to CSV, TXT (tab-delimited), or MAT files.
- Save high-resolution analyzer display images to PDF files.
- Retrieve your data files from your device via Files (iCloud Drive), iTunes File Sharing, or through a web browser on another device. Files may also be opened in other compatible apps (e.g. Mail, Notes, Numbers, Dropbox, etc).
Basic Tools:

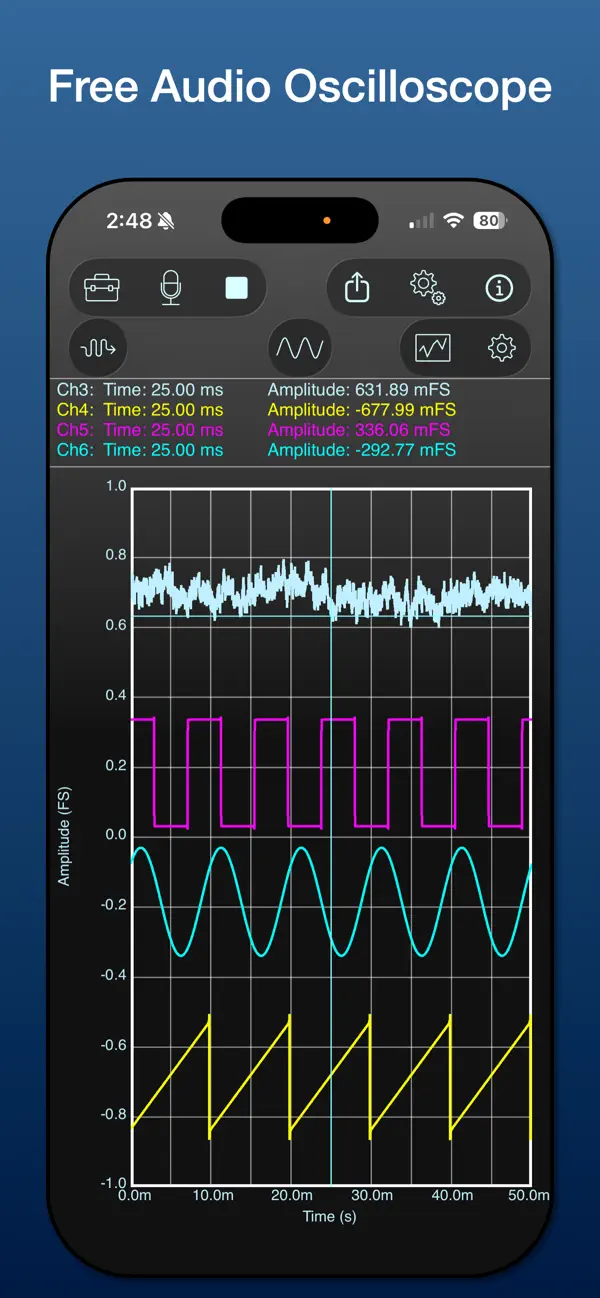

- Oscilloscope
- FFT Analyzer - Spectrum analyzer with user-settable frequency limits and input triggering
- 2D Real-time Spectrogram Analyzer
- XY Plotter - Create Lissajous curves or visualize your stereo mix
- Stereo Signal Generator
Advanced Tools: (Advanced Tool Set also includes basic tools)
- 3D Real-time Spectrogram Analyzer - Stunning live visualization of incoming data
- Octave-band Analyzer - Whole and 1/3-octave RTA
- Level Meter - Overall signal level meter
- Max Levels
- Noise Dosimeter

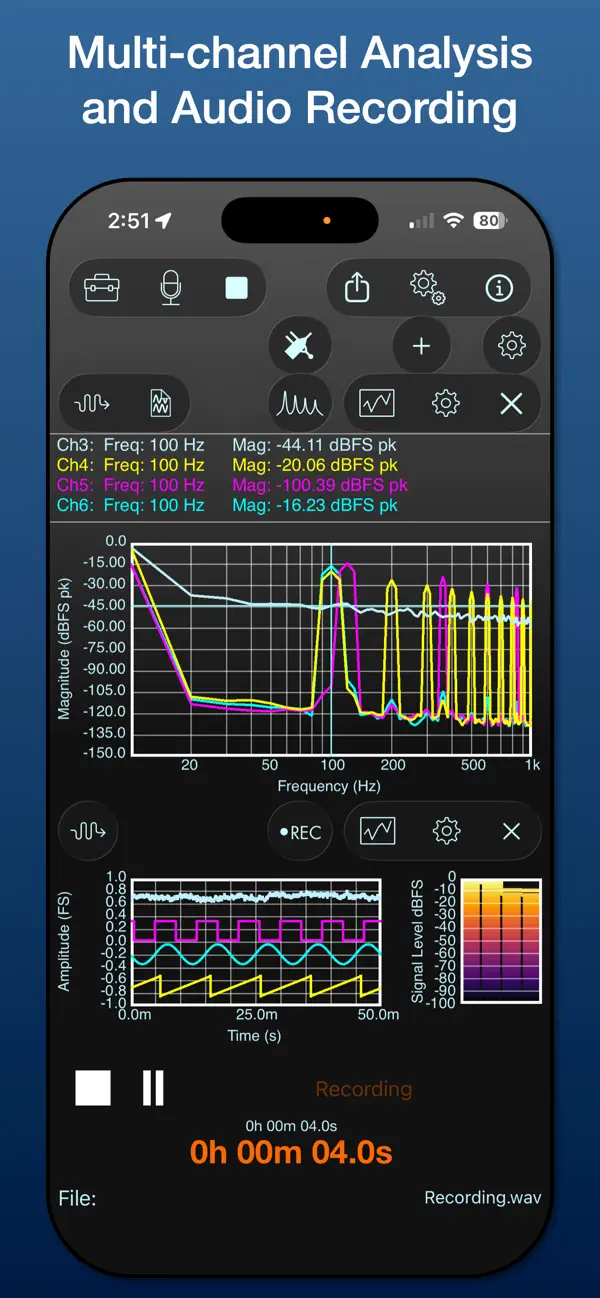

- Data Recorder - Stream up to 8 channels to WAV, AIF, or CAF audio files
- Multi-channel Audio File Player - Analyze pre-recorded data
Pro Tools: (Pro Tool Set subscription includes basic and advanced tools)
- Dual-channel System Analyzer (Dual FFT analysis with support for Frequency Response Magnitude/Phase, Phase Delay, Group Delay, Coherence, Impulse Response and Cross-Correlation)
- Sound Intensity Analyzer - With a suitable p-p probe, measure sound intensity and acoustic particle velocity spectra (narrowband FFT and whole or 1/3-octave bands) and time waveforms.
- Room Acoustics Analyzer (T20, T30, T60, nonlinearity, EDT, Early Decay Time, Center Time, Clarity, and Definition in various frequency bands, adjustable Schroeder integration limits)
- MultiTool - Powerful data monitoring and project management (Add 2-6 subtools, depending on screen size, and save configurations for easy recall at a later time.)
- Polar Plot - Generate beautiful high-resolution plots of polar data loaded from properly formatted data in a text or csv file.
Additional Pro Features:
- User-defined custom metadata in saved audio and data files
- Data logging support in the Level Meter, Octave Analyzer, and Noise Dosimeter
- Percentile exceeded sound levels in the Level Meter and Octave Analyzer
- NC, RNC, and NR references curves, NC, SIL, and NR values in the Octave Analyzer
- Voltage decibel levels can be displayed in dBV or dBu
Subscription Terms:
- https://www.faberacoustical.com/apps/subscriptions/terms.html
Privacy Policy:
- https://www.faberacoustical.com/about/privacy.html
Terms and Conditions for FaberAcoustical.com:
- https://www.faberacoustical.com/about/terms.html
Quoi de neuf dans la dernière version ?
- The IO Device Configuration menu features some changes related to audio sample rates. We have found that in recent versions of iOS, the sample rate will almost always stay set to 48 kHz when the audio input and output routes do not belong to a single audio hardware device. So, when you want to run data analysis or acquisition at higher or lower sample rates for a dedicated input device, like a USB microphone or accelerometer, this iOS behavior makes that impossible. To address this issue, SignalScope now allows you to disable audio output so you can operate your input device at the desired sample rate. With audio output disabled, virtual output channels are still available for analyzing signals from the Signal Generator or File Player tools.
- In addition to the option to operate input devices at different sample rates, SignalScope now presents a list of supported sample rates for select hardware devices instead of a text field for manual entry of the desired sample rate. So, if you’re performing vibration measurements with e.g. a Digiducer USB accelerometer, you can select from a list of known supported sample rates (between 8 and 48 kHz) instead of using trial and error to manually find a supported sample rate that more closely matches your analysis needs.
- An option to disable audio output mixing with other apps has also been added. In earlier versions of SignalScope, output mixing was always enabled. This option doesn’t have any effect when audio output is disabled.
- Fixed an issue in which the sample rate of the Signal Generator tool might not be immediately updated if the sample rate changed while the tool was running.
- Fixed an issue that would sometimes stop the Signal Generator tool if the sample rate changed while the tool was running.
- Addressed some cosmetic issues.
