BMC Editor

iPhone / Utilitaires

The BMC Editor App for iPad is the official companion editor for the Badass MIDI Controller (BMC) Library, built for creating fully customizable MIDI controllers using Teensy and ESP32 boards. It offers a complete, code-free editing experience—right from your iPad.

Features:

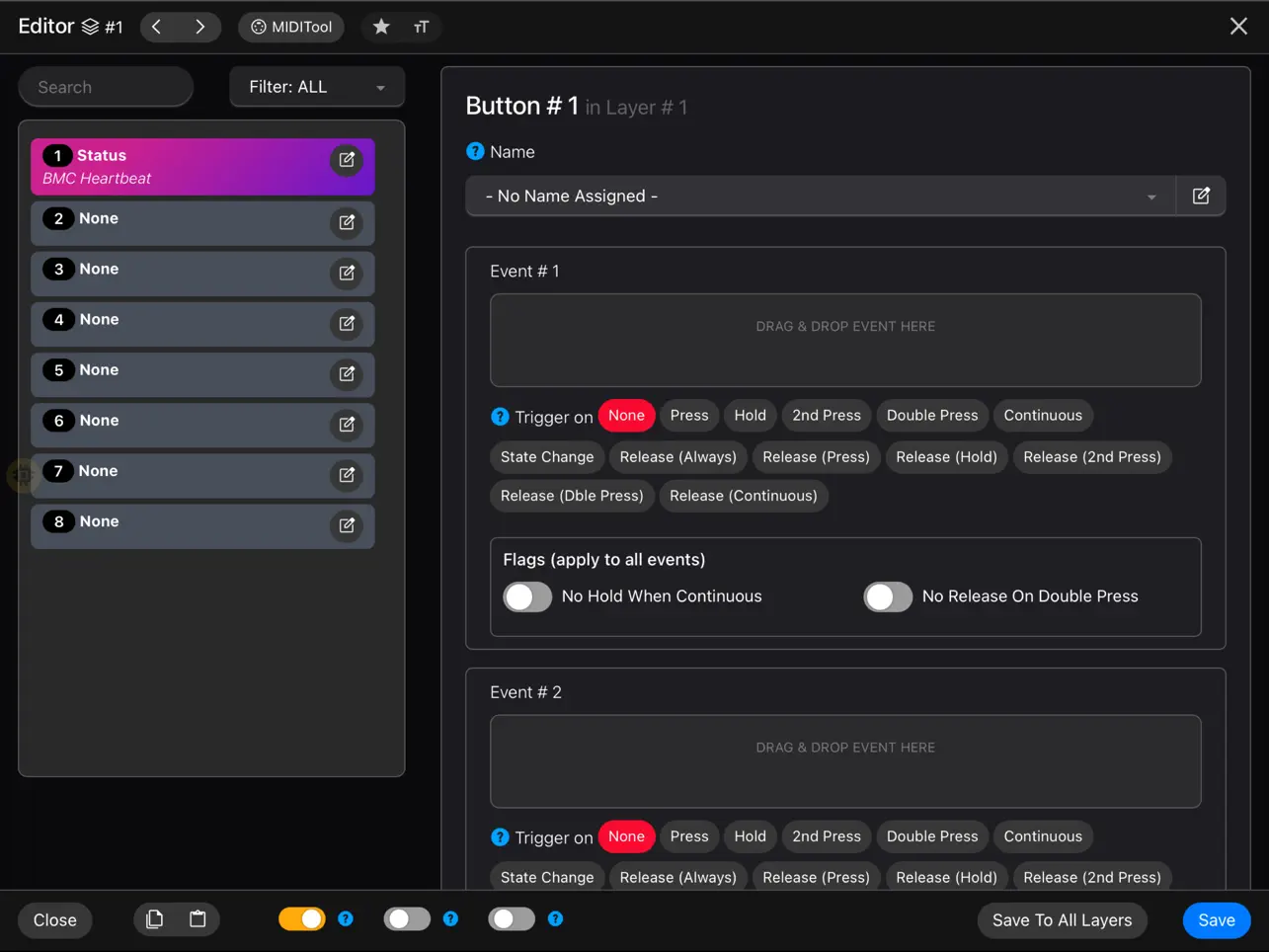

• Visual editor for buttons, LEDs, encoders, pots, displays, and more
• Real-time parameter editing—no need to re-upload firmware
• Full support for USB, Serial, and BLE MIDI connections
• Integrated Knowledge Base with board info and FAQ

Requirements:
• USB connections on Lightning iPads require a Lightning to USB adapter
• BLE MIDI requires the free app midimittr, available on the App Store

Note: The Serial Monitor is not available in the iPad version.

Start building your dream MIDI controller today at roxxxtar.com/bmc

Quoi de neuf dans la dernière version ?

What’s New in v2.3.4

Highlights:
• Beta support for ESP32-S2, ESP32-S3, S2 Mini, and S3 Zero
• Built-in USB MIDI for ESP32-S2/S3 (plug and play)
• BLE MIDI auto-enabled on compatible ESP32 boards
• Support for ST7735 and SH1106 displays
• LFO Waveform Preview
• Potentiometer taper selection
• Button settings: Debounce Mode, Continuous Time, Double-Press Window

Config File Maker Improvements:
• Syntax highlighting added to preview
• New data retention option: Built-in File System 32K (uses LittleFS)
• Precision Master MIDI Clock (hardware timer–based)
• Warning when editing imported Config.h that triggers a memory erase

Other Enhancements:
• Updated Board Info and new F.A.Q. in the Knowledge Base
• Improved response for buttons, encoders, and pots
• Mini Display support requires updated Config.h (auto-handled by Config File Maker)
• Internal cleanup and minor performance improvements

Note:
The Built-in File System is now the default and recommended storage method for the BMC Store.
